Mark Architectural Lighting (Acuity Brands Lighting)

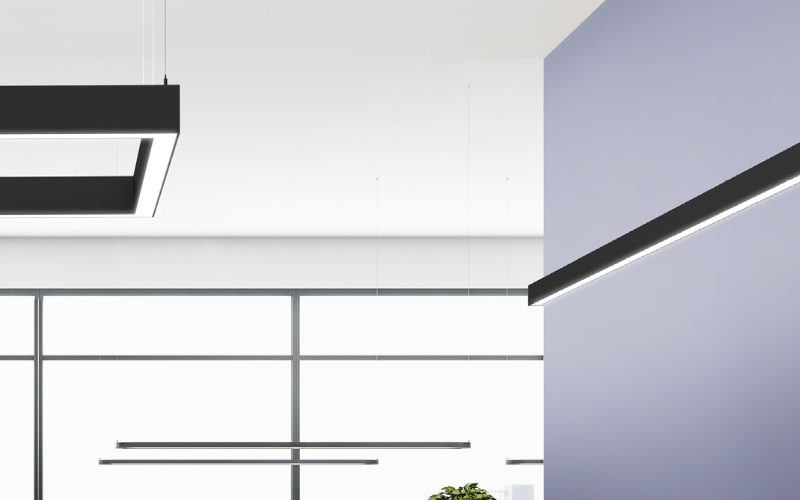

S4WID. SLOT 4 WALL INDIRECT/DIRECT DC2DC ARCHITECTURE.
Configure
Add to project
RESOURCES
DESCRIPTION
SLOT 4 linear lighting delivers a simple line of light by creating brilliant illumination and exceptional visual comfort in a small form factor.
SLOT 4 Wall delivers:
SLOT 4 Wall delivers:
- Up to 1442 (direct) | 1580 (indirect) delivered LMF
- As low as 292 (direct) | 325 (indirect) delivered LMF
- Up to 126 (direct) | 166 (indirect) LMW
- Asymmetric, wall wash, wall graze, and batwing (direct)
- Asymmetric and batwing distributions (indirect)
- Multiple lens options including continuous flush, drop, and edge view
- Top glow shielding (indirect) and integrated deep cell quiet baffle (direct)
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 1/2"L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 FtRun lenght (Ft)H: 5 1/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)1.8 W/Ft2.2 W/Ft2.9 W/Ft2.4 W/Ft4.4 W/Ft3.6 W/Ft4.5 W/Ft5.9 W/Ft5.8 W/Ft7 W/Ft7.4 W/Ft9.3 W/Ft8.4 W/Ft9.1 W/Ft11.1 W/Ft12.1 W/Ftcustom
- Lumens(Approx)292 Lm/Ft394 Lm/Ft325 Lm/Ft405 Lm/Ft575 Lm/Ft610 Lm/Ft791 Lm/Ft973 Lm/Ft797 Lm/Ft1192 Lm/Ft1352 Lm/Ft1442 Lm/Ft1027 Lm/Ft1225 Lm/Ft1484 Lm/Ft1580 Lm/Ftcustom
- OpticsIndirect/DirectGrazingGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to <1%EldoLED 0-10V/DALI
- Controls/NetworkIntegral Sensor
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSADeclare
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeS4WID-DC2DC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
