S6CD. SLOT 6 PERIMETER.
Configure
Add to project
RESOURCES
DESCRIPTION

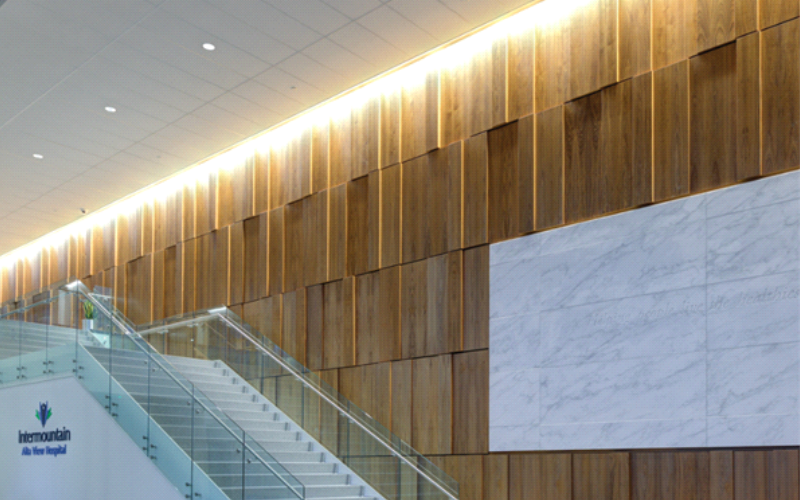

Designed to define the edge with SLOT 6" Perimeter, illuminating walls with intention through seamless lens continuity, field-adjustable lengths, optional telescoping ends for wall-to-wall flexibility, and advanced optical control with multiple regress depths to place light exactly where it’s needed.
Flexibility Across All Applications
Superior Color Quality and Efficiency
Advanced Control Options
Flexibility Across All Applications
- Regress depth options include 0”, 1”, and 6”
- Optional field adjustable end allows for +0 to -12" adjustability at installation
- Graze distribution option highlights the wall, asymmetric distribution option illuminates the room from the perimeter
- Continuous lens and louver options
- Mounting options allow for grid or drywall installation
- Versatile end trim options for all installation scenarios
Superior Color Quality and Efficiency
- Outputs up to 1500 lumens per foot, with efficacies up to 124 LPW
- High-efficiency 90 CRI LEDs provide outstanding color rendering
- Dynamic Tunable White and RGBW available
Advanced Control Options
- Enjoy smooth, flicker-free dimming with eldoLED®, paired with your choice of nLight® wired and wireless control systems, including 0-10V, DALI, nTune (TUWH), and DMX (RGBW)
- Emergency and zoning options easily ensure solutions are compliant with local lighting codes
- 57V DC Available
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6 3/8"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90
- Watt(Approx)2.58 W/Ft3.4 W/Ft5.04 W/Ft6.78 W/Ft8.5 W/Ft10.5 W/Ft11.65 W/Ft13.95 W/Ftcustom
- Lumens(Approx)269 Lm/Ft358 Lm/Ft537 Lm/Ft705 Lm/Ft868 Lm/Ft1046 Lm/Ft1125 Lm/Ft1284 Lm/Ftcustom
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-Dim0-10VDALI
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSABAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth4 3/8 ''5 3/8 ''8 3/8 ''10 3/8 ''
