Mark Architectural Lighting (Acuity Brands Lighting)
S6RD. SLOT 6 RECESSED.
Configure
Add to project
RESOURCES
DESCRIPTION

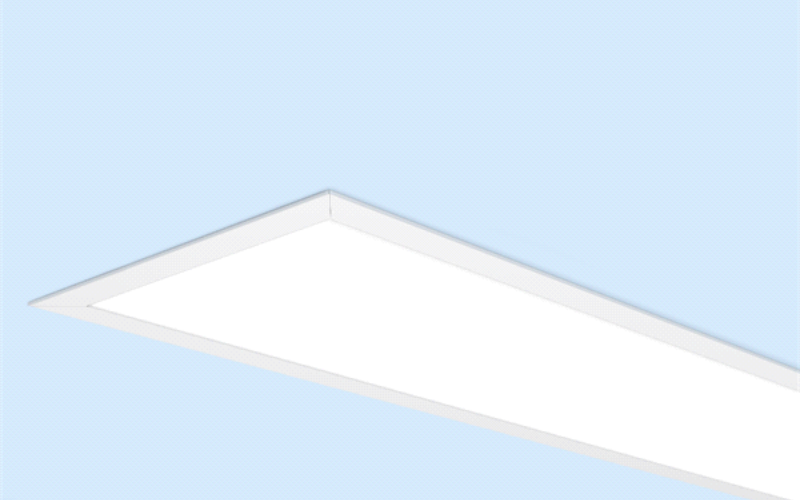

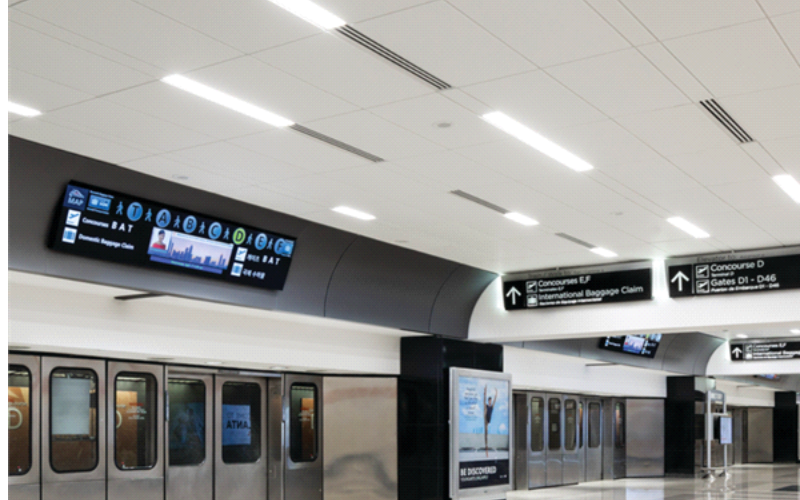

Integrated into the architecture, SLOT 6” Recessed continues the family’s legacy of uninterrupted lines of light, complete optical control, and a minimalist aesthetic that elevates linear lighting design.
Flexibility Across All Applications
Superior Color Quality and Efficiency
Advanced Control Options
Flexibility Across All Applications
- Wall wash, wall graze, batwing, and asymmetric distributions tailor lighting to suit any application
- Multiple lens styles include continuous lens, drop lens (0.5"–1.5"), and louvers, for the perfect aesthetic and performance

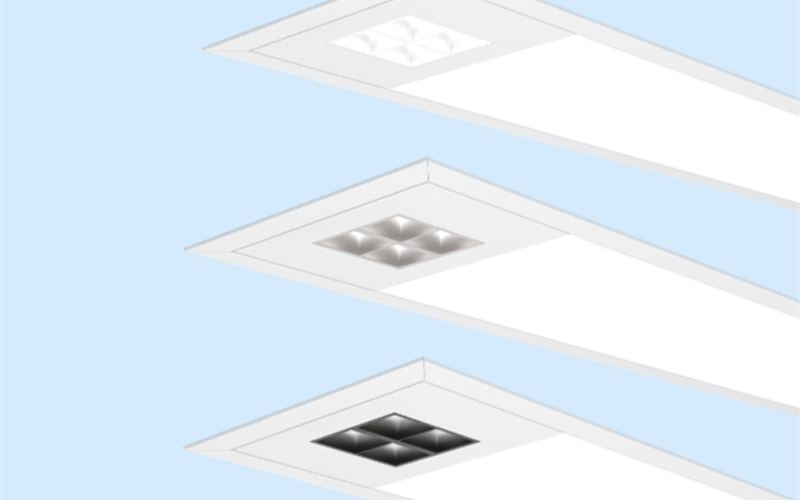

- Optional integrated downlights offer multiple beam angles and a selection of reflector colors, adding accent and flexibility to your design
- Mounting options allow for grid, drywall, or install from below installation
Superior Color Quality and Efficiency
- Outputs up to 1500 lumens per foot, with efficacies up to 124 LPW
- High-efficiency 90 CRI LEDs provide outstanding color rendering
- Dynamic Tunable White and RGBW available
Advanced Control Options
- Enjoy smooth, flicker-free dimming with eldoLED®, paired with your choice of nLight® wired and wireless control systems, including 0-10V, DALI, nTune (TUWH), and DMX (RGBW)
- Emergency and zoning options easily ensure solutions are compliant with local lighting codes
- 57V DC Available
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 1/8"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90
- Watt(Approx)2.58 W/Ft3.4 W/Ft5.04 W/Ft6.78 W/Ft8.5 W/Ft10.5 W/Ft12.8 W/Ft13.95 W/Ftcustom
- Lumens(Approx)313 Lm/Ft417 Lm/Ft625 Lm/Ft821 Lm/Ft1011 Lm/Ft1219 Lm/Ft1403 Lm/Ft1496 Lm/Ftcustom
- OpticsDirectAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-Dim0-10VDALI
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSADLC*BAA
- EnvironmentAntimicrobial FinishDampWet
- Mounting TypeCeiling RecessedWall RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth4 3/8 ''
