Mark Architectural Lighting (Acuity Brands Lighting)

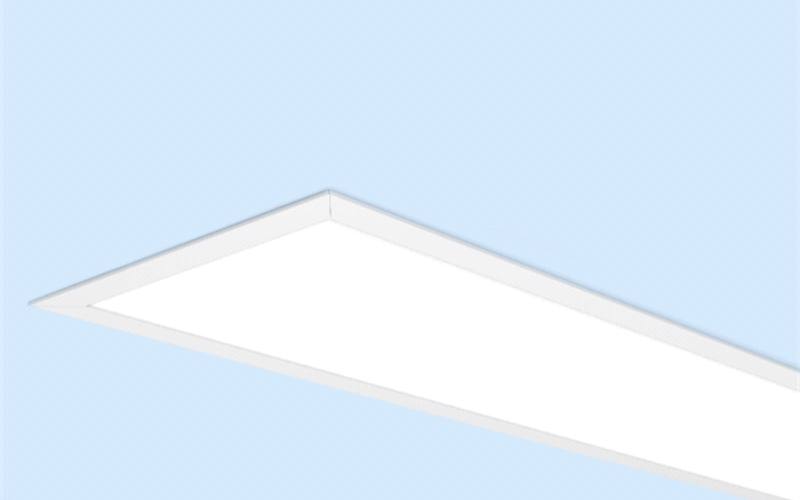

S6RD. SLOT 6 RECESSED DC2DC ARCHITECTURE.
Configure
Add to project
RESOURCES
DESCRIPTION
Integrated into the architecture, SLOT 6” Recessed continues the family’s legacy of uninterrupted lines of light, complete optical control, and a minimalist aesthetic that elevates linear lighting design.
Flexibility Across All Applications
Superior Color Quality and Efficiency
Advanced Control Options
Flexibility Across All Applications
- Wall wash, wall graze, batwing, and asymmetric distributions tailor lighting to suit any application
- Multiple lens styles include continuous lens, drop lens (0.5"–1.5"), and louvers, for the perfect aesthetic and performance

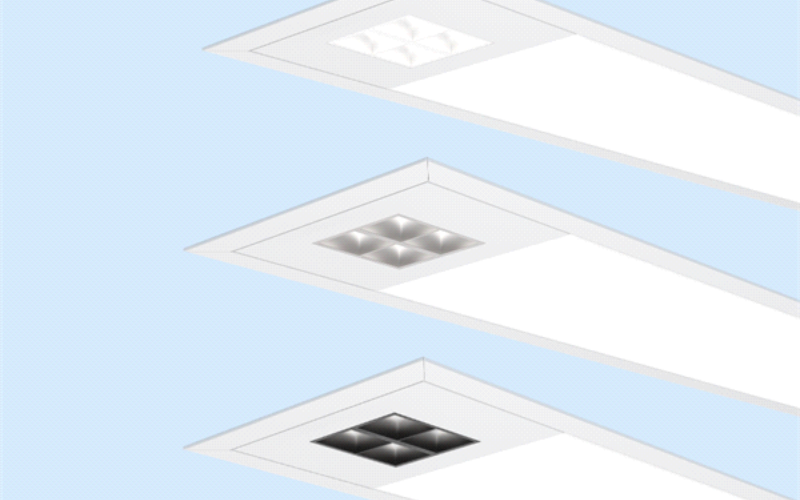

- Optional integrated downlights offer multiple beam angles and a selection of reflector colors, adding accent and flexibility to your design
- Mounting options allow for grid, drywall, or install from below installation
Superior Color Quality and Efficiency
- Outputs up to 1500 lumens per foot, with efficacies up to 124 LPW
- High-efficiency 90 CRI LEDs provide outstanding color rendering
- Dynamic Tunable White and RGBW available
Advanced Control Options
- Enjoy smooth, flicker-free dimming with eldoLED®, paired with your choice of nLight® wired and wireless control systems, including 0-10V, DALI, nTune (TUWH), and DMX (RGBW)
- Emergency and zoning options easily ensure solutions are compliant with local lighting codes
- 57V DC Available
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 1/8"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90
- Watt(Approx)2.4 W/Ft3.16 W/Ft4.68 W/Ft6.3 W/Ft7.9 W/Ftcustom
- Lumens(Approx)288 Lm/Ft384 Lm/Ft575 Lm/Ft755 Lm/Ft930 Lm/Ftcustom
- OpticsDirectGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to <1%EldoLED 0-10V/DALI
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSA
- EnvironmentAntimicrobial FinishDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth4 3/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeS6RD-DC2DC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
