Mark Architectural Lighting (Acuity Brands Lighting)

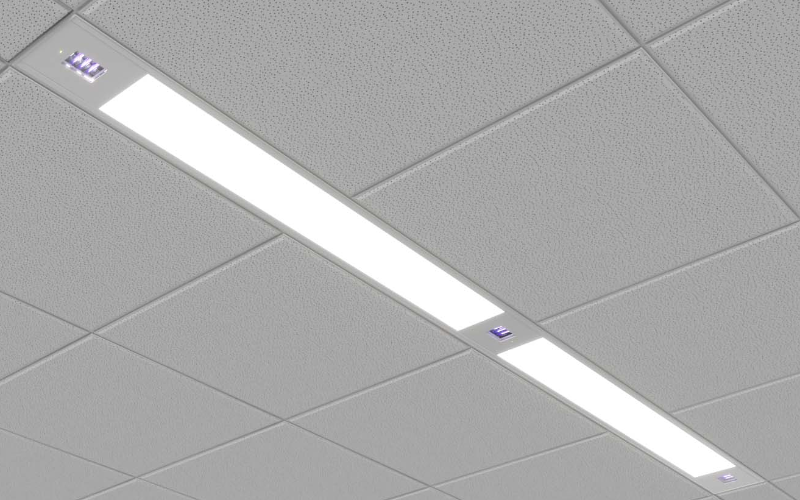

SL6LUV. SLOT 6 RECESSED WITH CARE 222 - FAR-UVC FILTERED 222NM DISINFECTION TECHNOLOGY.
 Configure
 Add to project
DESCRIPTION
SLOT 6 Recessed linear lighting with Care222® technology reduces active pathogens* on non-porous surfaces using Ushio Care222 far-UVC disinfection** technology. SLOT 6 features Care222 technology, a mercury-free far-UVC excimer lamp that contains a patented short pass filter for narrow band 222nm emission. This filter removes wavelengths that penetrate the living tissue in skin or deeper than the top layer of the cornea.

Blending modern aesthetics with unparalleled optical performance, Slot 6 LED creates simple lines of light. Energy efficiency, design flexibility and seamless control make this recessed fixture a brilliant addition to any design. Available in 4’ or 8’ lengths, SLOT 6 can be used to create continuous runs that elevate ceilings in offices, lobbies, hotels and beyond. Slot 6 delivers up to 1200 lumens per foot at an excellent color quality of up to 90CRI.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 6"
    L: 4 Ft8 Ft12 Ft16 Ft20 Ft24 Ft28 Ft32 Ft36 Ft40 Ft44 Ft48 Ft
  • Light Source
    LEDUV
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    80 90
  • Watt(Approx)
    2.89 W/Ft3.3 W/Ft5.82 W/Ft5.09 W/Ft8.15 W/Ft7.13 W/Ft9.01 W/Ft10.29 W/Ft
  • Lumens(Approx)
    292 Lm/Ft333 Lm/Ft511 Lm/Ft584 Lm/Ft786 Lm/Ft688 Lm/Ft930 Lm/Ft813 Lm/Ft
  • Optics
    Direct
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%Non-Dim0-10V
  • Controls/Network
    nLight®Wireless Dimming
  • Power/Voltage
    Integral120V277V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    65000 h
  • Certificates
    UL/CUL
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedDrywallTrimless DrywallT-Grid Ceiling
  • Housing
    New ConstructionChicago Plenum
  • Housing Depth
    4 3/8 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
