Mark Architectural Lighting (Acuity Inc.)
WHSPR. Whisper LED.
Configure
Add to project
RESOURCES
DESCRIPTION

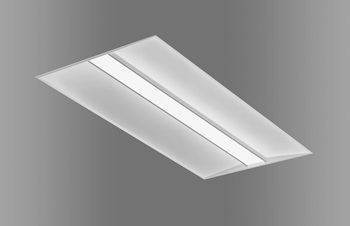

Gently sloping side panels give Whisper LED its depth and appealing angles. Whether units are installed in rows or individually, the look is artfully clean and simple. Multiple lens options for the center panels allow you to achieve the appropriate design and illumination for each space. Whisper LED is available in 1’ x 4’, 2’ x 2’ and 2’ x 4’ sizes, and it fits perfectly in a variety of business and institutional settings including offices, schools and hospitals.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 Ft2 FtL: 2 Ft4 FtH: 4 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)16 W20 W24 W27 W28 W32 W38 W40 W42 W47 W51 W56 W57 W60 W65 W67 W70 W77 W
- Lumens(Approx)2013 Lm2494 Lm2969 Lm3264 Lm3468 Lm3960 Lm4473 Lm4755 Lm5012 Lm5527 Lm6033 Lm6529 Lm7052 Lm7214 Lm7535 Lm8032 Lm8238 Lm8542 Lm10106 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-Dim0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSADeclareBAA
- EnvironmentAntimicrobial FinishDamp
- Mounting TypeCeiling SurfaceCeiling RecessedT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth4 1/2 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeWHSPR
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
