Mark Architectural Lighting (Acuity Inc.)
WHSPR. WHISPER Luminous Center DC2DC Architecture.
Configure
Add to project
RESOURCES
DESCRIPTION

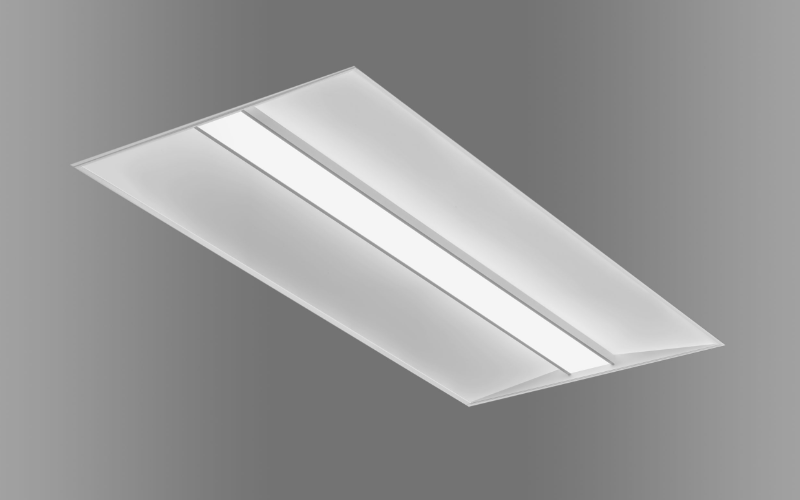

Whisper LCTR (Luminous Center) illuminates from its middle outward, with light glowing down its gently sloping side panels for an added appeal. Whether applied in rows or individually, Whisper Luminous Center brightens grid ceilings in offices, schools and hospitals and other institutional settings with a captivating, simple look. Whisper Luminous Center is available in both Static White and Tunable White, delivering up to 8500 lumens at a color quality of up to 90CRI. Select from 2X2, 2X4 or 1X4 sizes to best suit your design vision.
Whisper LCTR is Declare listed
Whisper LCTR is compatible with the DC2DC architecture
Whisper LCTR is Declare listed
Whisper LCTR is compatible with the DC2DC architecture
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 Ft2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90
- Watt(Approx)17 W19 W24 W27 W36 W37 W39 W38 W43 W47 W50 W56 W58 W61 W63 W84 W
- Lumens(Approx)2026 Lm2556 Lm3047 Lm3339 Lm4044 Lm4554 Lm4858 Lm5058 Lm5548 Lm6026 Lm6542 Lm7021 Lm7238 Lm7560 Lm7885 Lm9672 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to <1%EldoLED 0-10V/DALI
- Controls/NetworknLight®Integral Sensor
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSADeclare
- EnvironmentAntimicrobial FinishDamp
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth4 1/2 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeWHSPR-LCTR-DC2DC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
