Mark Architectural Lighting (Acuity Brands Lighting)

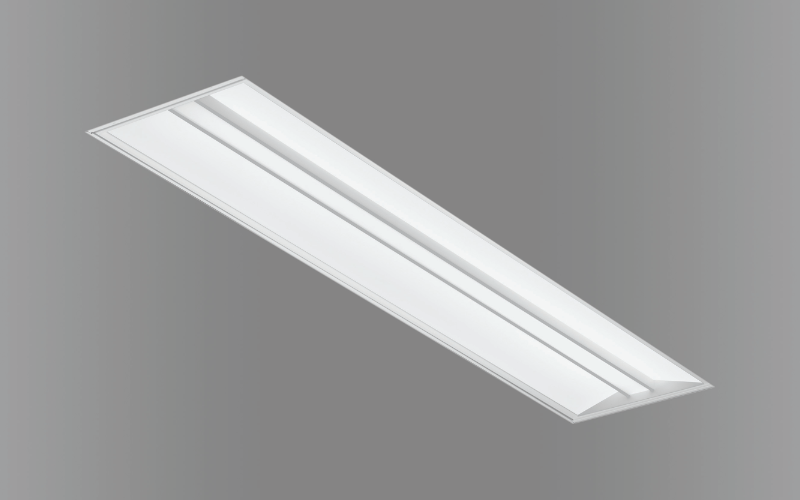

WHSPR. WHISPER Tunable White DC2DC Architecture.
Configure
Add to project
RESOURCES
DESCRIPTION
Gently sloping side panels provide Whisper with depth and appealing angles. Whether applied in rows or individually, Whisper brightens grid ceilings in offices, schools and hospitals and other institutional settings with an artful, and simple look. Whisper is available in both Static White and Tunable White, delivering up to 8500 lumens at a color quality of up to 90CRI. Select from 2X2, 2X4 or 1X4 sizes to best fit your design vision.
Whisper is Declare listed.
Whisper is compatible with the DC2DC architecture
Whisper is Declare listed.
Whisper is compatible with the DC2DC architecture
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 Ft2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/ColorTunable White
- CRI90
- Watt(Approx)15 W20 W22 W25 W29 W36 W
- Lumens(Approx)1671 Lm2588 Lm2635 Lm3386 Lm3998 Lm5012 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to <1%EldoLED 0-10V/DALI
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSADeclare
- EnvironmentAntimicrobial FinishDamp
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingIC
- Housing Depth4 1/2 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeWHSPR-TUWH-DC2DC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
