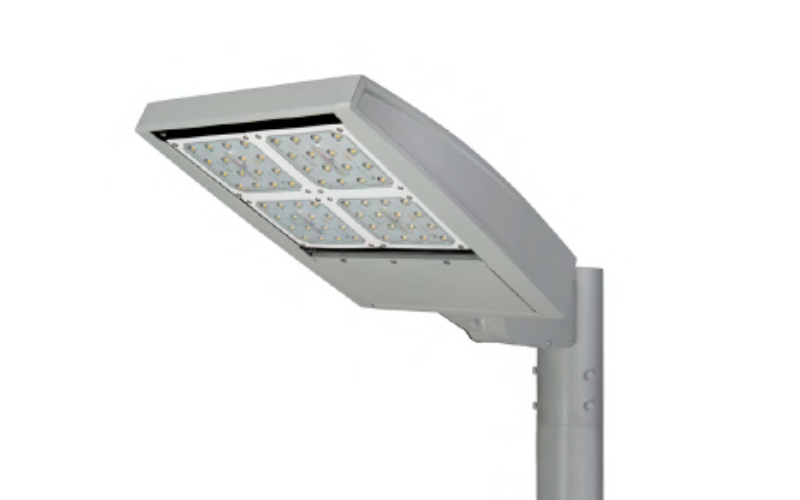

GLEON. Galleon Adjustable Floodlight Luminaire.
Configure
Add to project
RESOURCES
DESCRIPTION
The Galleon™ LED Adjustable luminaire combines a low-profile design with the mounting angle flexibility of a pole-mounted floodlight to illuminate large areas. With a maximum tilt angle of 60° from horizontal, and patented, high-efficiency AccuLED Optics™ technology, the Galleon Adjustable provides uniform and energy conscious illumination for parking lots, container/rail yards, or any large area application. Fixture mounts direct to pole or to a bullhorn or 2-3/8" – 3" O.D. pole-top tenon. IP66 rated and UL/cUL Listed for wet locations.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 15 1/2"21 5/8"27 5/8"33 3/4"L: 26 19/32"33 1/8"33 25/32"H: 4 7/8"
- Light SourceLED
- CCT/ColorAmber (WildLife)2400K or less2700K3000K3500K4000K5000K6000K
- CRI70 80
- Watt(Approx)34-323 W44-419 W59-558 W67-640 W
- Lumens(Approx)5139-48586 Lm6303-59579 Lm7800-73742 Lm8556-80894 Lm
- OpticsDirectType IType IIType IIIType IVType VArea 90°
- AdjustableAdjustable
- DimmingDim to 3-10%0-10VDALI
- Controls/NetworkEnlightedWaveLinxIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277V347V480V
- Integral Emergency
- Lumen Maintenance2400000 h
- CertificatesUL/CULDLC*BAA
- EnvironmentIP66
- Mounting TypePole/Mast ArmWall Arm/CantileverSlip FitterTenon Adapter
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
