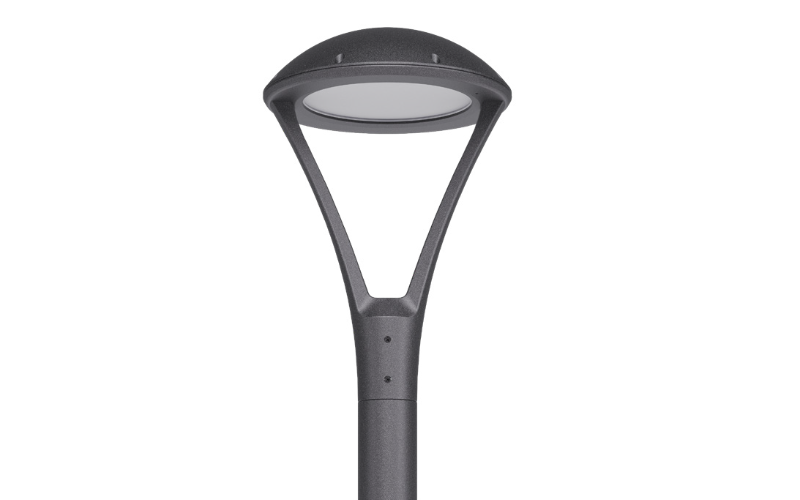

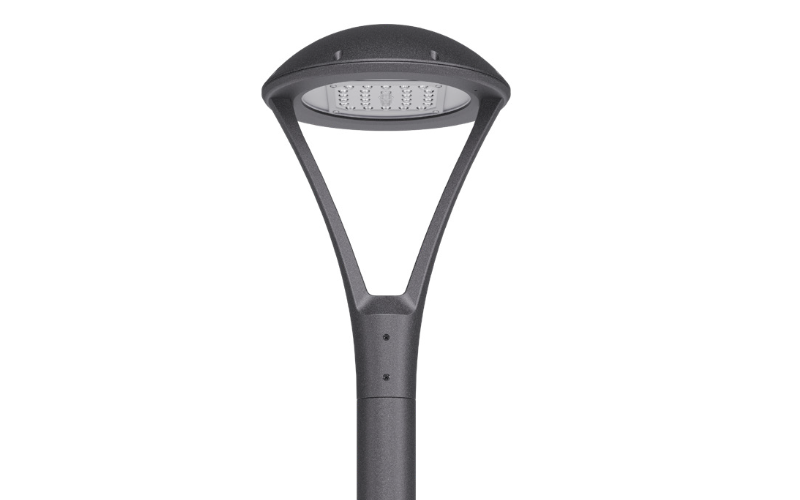

TPT. TopTier Post Top Nano.
Configure
Add to project
RESOURCES
DESCRIPTION
The TopTier™ Post Top Nano provides a high performance visual comfort post top solution. The compact size design it an unobtrusive option for lighting outdoor spaces at low mounting heights. Additionally, it offers precision discrete options for spaces where more defined light distributions and efficacy are a priority. The TPT-N is designed to mount to a 2-3/8" tenon and perfectly match a 3" round pole, for a refined look along with savings on total installed cost.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 12.6"L: 12.6"H: 18.7"
- Light SourceLED
- CCT/ColorAmber (WildLife)2400K or less2700K3000K3500K4000K5000K6000K
- CRI70 80 90
- Watt(Approx)9 W26.9 W31 W40 W42.4 W59.2 W54 W80 W
- Lumens(Approx)943 Lm2774 Lm4420 Lm4058 Lm6079 Lm5079 Lm6713 Lm9093 Lm
- OpticsDirectMediumWide FloodGeneral DiffusedType IType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%DALI
- Controls/NetworkWaveLinxIntegral Sensor
- Power/VoltageIntegralUNV 120-277VUNC 347-480V347V480V
- Integral Emergency
- Lumen Maintenance270000 h
- CertificatesUL/CULBAA
- EnvironmentIP66
- Mounting TypePole/Post Top
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeTPT
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
