Metalux (Cooper Lighting Solutions)

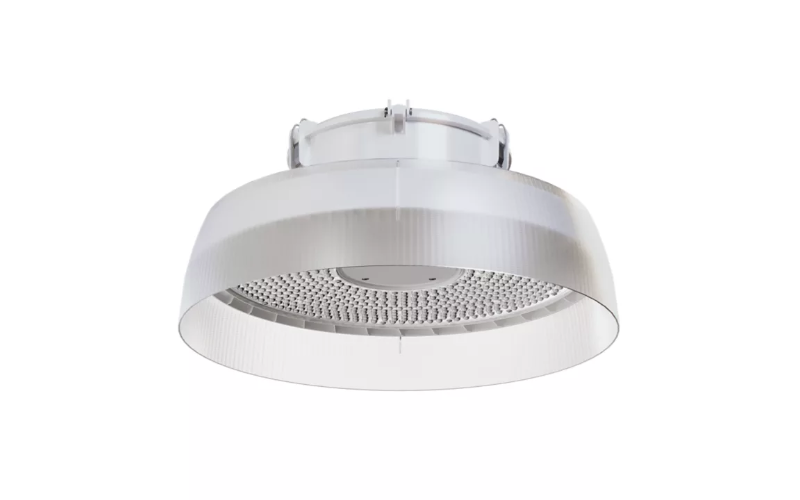

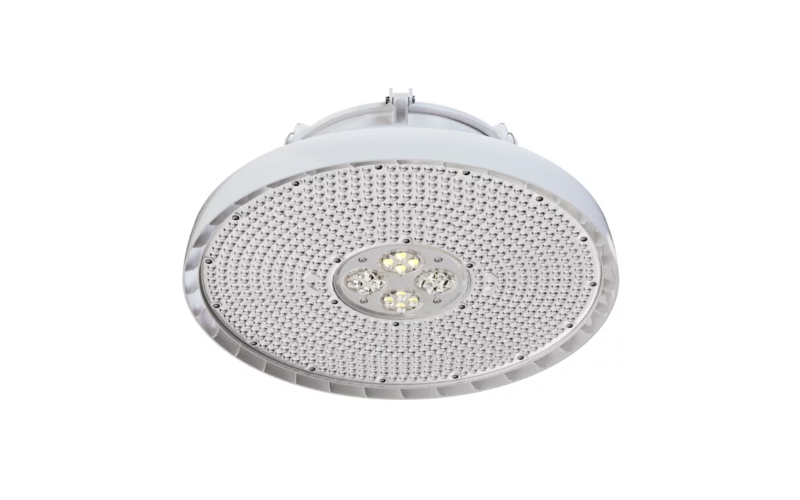

EHBR1. Elevate LED Round High Bay.
 Configure
 Add to project
DESCRIPTION
The Elevate High Bay puts light where it belongs. With next-level optical control and efficacy, Elevate delivers light levels with less fixtures and lower energy consumption.

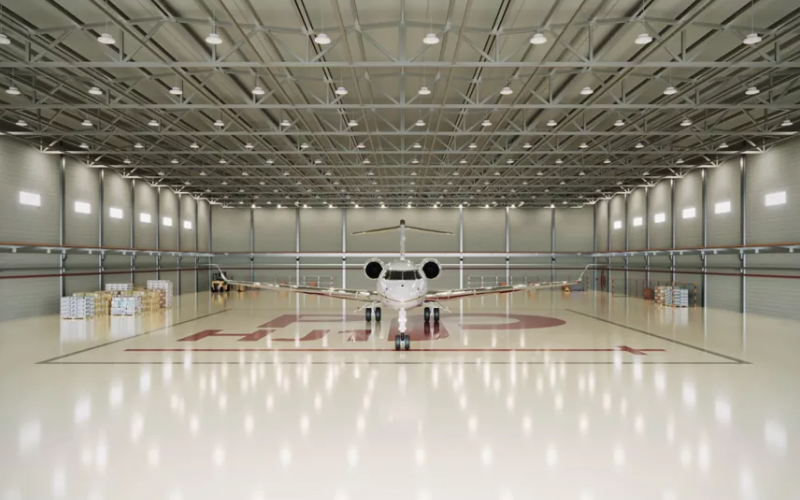

The Elevate Round High Bay is engineered to outperform traditional luminaires in demanding commercial and industrial environments. The durable diecast aluminum construction provides durability, optimal thermal control, and longer system life. Precision optics focus light exactly where it’s needed, delivering higher foot-candles with fewer fixtures while reducing both wattage and installation cost. The durable diecast aluminum housing is IP65 rated and built to withstand harsh conditions from -40°C to 65°C. Ideal for manufacturing facilities, distribution centers, large indoor, sports/recreation, big box retail, and multipurpose spaces.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 20 1/2"
    L: 20 1/2"
    H: 8 3/8"
  • Light Source
    LED
  • CCT/Color
    3000K3500K4000K5000K
  • CRI
    80 90
  • Watt(Approx)
    67 W94 W123 W157 W197 W231 W266 W301 W340 W
  • Lumens(Approx)
    1200 Lm1500 Lm1800 Lm2400 Lm3000 Lm3600 Lm4000 Lm12461 Lm17927 Lm23759 Lm30009 Lm35917 Lm42030 Lm48114 Lm53950 Lm60196 Lm
  • Optics
    DirectIndirectNarrowMediumWide FloodGeneral DiffusedAsymmetric Indirect/General Direct
  • Adjustable
  • Dimming
    Dim to 3-10%0-10VDALI
  • Controls/Network
    BluetoothWireless DimmingWaveLinxIntegral Sensor
  • Power/Voltage
    IntegralUNV 120-277VUNC 347-480V347V480V
  • Integral Emergency
  • Lumen Maintenance
    60000 h
  • Certificates
    UL/CULDLC*RoHS
  • Environment
    IP65
  • Mounting Type
    Ceiling Surface
  • Housing
  • Housing Depth
