Metalux (Cooper Lighting Solutions)

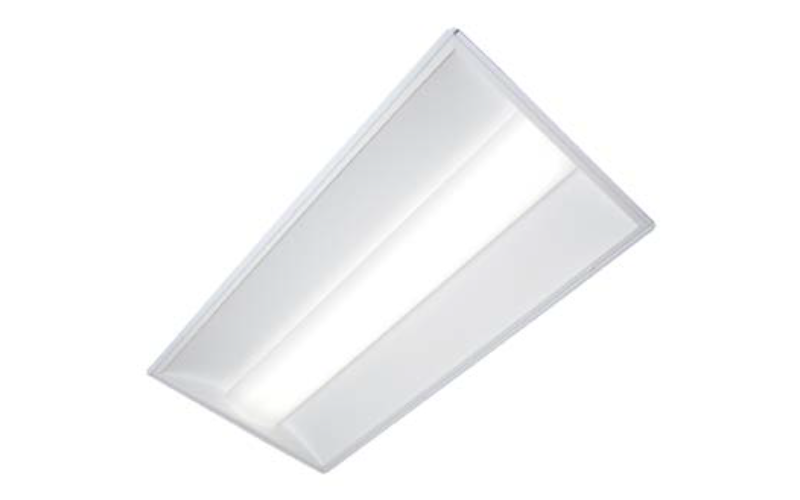

24CZ. Cruze SB 2' x 4' Specification Grade Troffer LED.
Configure
Add to project
RESOURCES
DESCRIPTION
The Cruze™ SB LED series combines contemporary styling and optimal illumination design with features to enable service from below (SB). This high performance LED troffer is constructed with Cooper's the latest technology platform and delivers unprecedented energy savings and aesthetics at an incredible value. Cruze SB offers a perfect balance of form and function making it an ideal choice for commercial office spaces, schools, hospitals, and retail merchandising areas.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K5000KTunable White
- CRI80 90
- Watt(Approx)21.6 W25.3 W29 W23.5 W28.6 W35.7 W32.6 W39.9 W40.7 W45.8 W46.6 W52.2 W57.6 W64.2 W69.1 W54.7 W60 W59.6 W
- Lumens(Approx)3387 Lm3932 Lm4461 Lm3440 Lm3974 Lm4523 Lm5029 Lm5614 Lm6194 Lm6864 Lm5145 Lm5724 Lm6236 Lm6709 Lm7404 Lm7972 Lm8430 Lm7357 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Step DimELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkWaveLinxIntegral Sensor
- Power/VoltageIntegralRemoteUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance196000 h
- CertificatesUL/CULDLC*T24*RoHSBAA
- EnvironmentDamp
- Mounting TypeCeiling Recessed
- HousingICChicago Plenum
- Housing Depth3 1/4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
