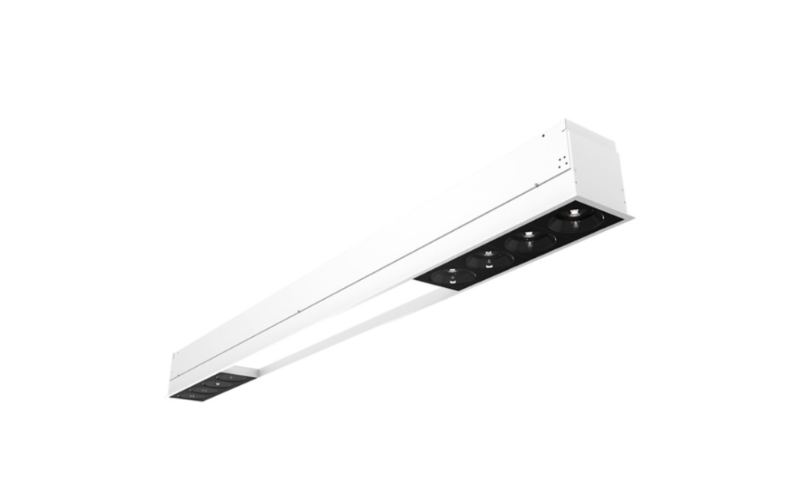

DPT5. Define Patient 5in Define Recessed Adjustable Downlights.
Configure
Add to project
RESOURCES
DESCRIPTION

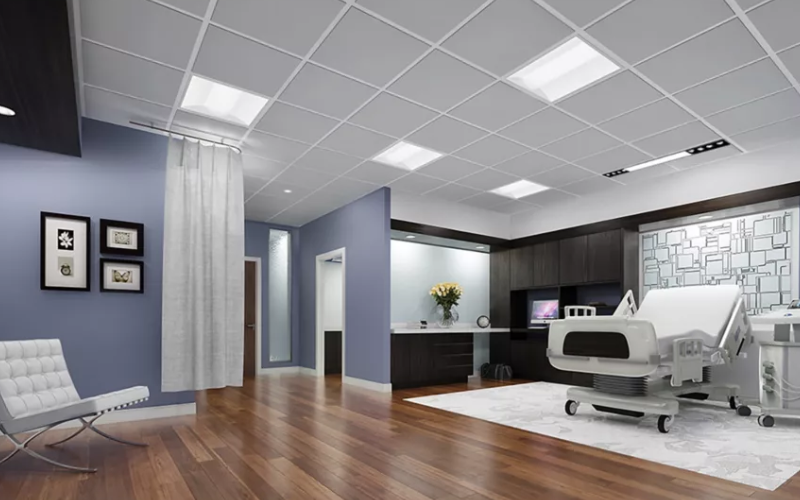

- Single Luminaire Installation for Patient Bed Application
- Flexible Solution with Symmetric Integrated Adjustable Downlights
- 4, 6, and 8 Downlight Configurations with Premium Hex Louver Option
- 4ft and 6ft Luminaire Lengths that Fit in a 6in Grid
- 5in Aperture with 1in Regressed Lens of Ambient Section
- Wipedown Lens and Antimicrobial Finish Option
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5"L: 4'6'
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI90
- Watt(Approx)3 W/Ft4.8 W/Ft6.8 W/Ft8.9 W/Ft10.6 W/Ftcustom
- Lumens(Approx)375 Lm/Ft610 Lm/Ft850 Lm/Ft1090 Lm/Ft1270 Lm/Ftcustom
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 1%0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULRoHS
- EnvironmentAntimicrobial FinishPatient RoomHealthcare General
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid CeilingTrimless Wood
- HousingNew ConstructionChicago Plenum
- Housing Depth6.125 ''
