New Star Lighting

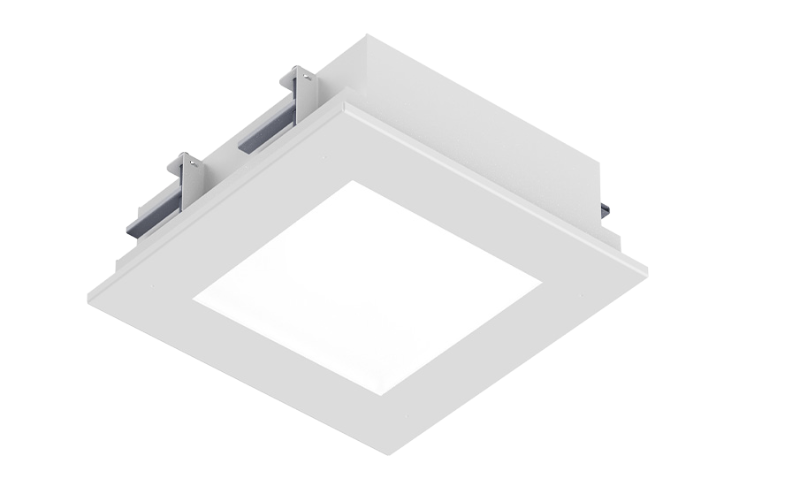

57M. DURACARET BEHAVIORAL HEALTH 57M SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION
Ligature resistant to meet behavioral health industry standards
Die-formed, seam welded, and ground smooth cold rolled steel or stainless steel housing
Tamper-resistant Torx® fasteners with center pin reject
Polyester powder coat following a 5 stage iron phosphate pre-treatment.
Fixture is certified to UL Standards
This product is Made in America and complies with the Buy American Act (BAA), and the Build America, Buy America Act (BABAA)
Die-formed, seam welded, and ground smooth cold rolled steel or stainless steel housing
Tamper-resistant Torx® fasteners with center pin reject
Polyester powder coat following a 5 stage iron phosphate pre-treatment.
Fixture is certified to UL Standards
This product is Made in America and complies with the Buy American Act (BAA), and the Build America, Buy America Act (BABAA)
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 FtL: 1 FtH: 4.25”
- Light SourceLED
- CCT/Color3500K4000K5000K
- CRI80 90
- Watt(Approx)12.5 W20 W
- Lumens(Approx)1438 Lm1500 Lm1562 Lm2090 Lm2185 Lm2280 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USABAA
- EnvironmentAntimicrobial FinishWetHealthcare General
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time57M-DC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
