CCADL. COMPLETECARE AMBER DOWNLIGHT SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION

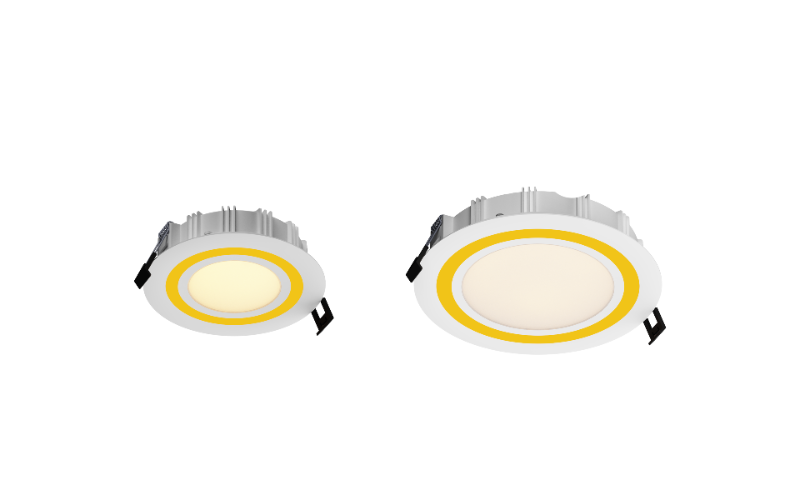

The CompleteCare™ Amber Downlight is available in a 4” and 6” round trim, designed with two circuit dimmable white and amber LEDs to help navigate bathrooms, corridors, kitchens and other applications. The shallow recessed downlight offers a slim, IC-rated design with an integrated junction box, eliminating the need for a separate housing that makes it ideal for shallow plenums. The luminaire includes a field-adjustable color temperature selection (2700K-5000K). It provides just the right amount of light for safe navigation.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.408"6.987"L: 5.408"6.987"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KField Select CCT
- CRI90
- Watt(Approx)24 W
- Lumens(Approx)1500 Lm2595 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLNSF
- EnvironmentAntimicrobial FinishIP65Healthcare General
- Mounting TypeCeiling RecessedTrimless Drywall
- HousingFixture
- Housing Depth1.282 ''1.286 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
