New Star Lighting
CCDLMRI6-R. COMPLETECARE MRI DOWNLIGHT SERIES.
 Configure
 Add to project

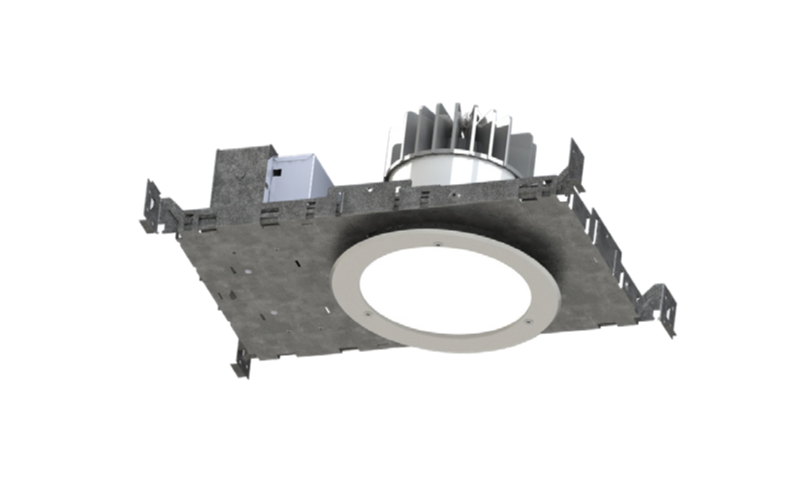

New Star Lighting. CCDLMRI6-R. COMPLETECARE MRI DOWNLIGHT SERIES.
New Star Lighting. CCDLMRI6-R. COMPLETECARE MRI DOWNLIGHT SERIES.
RESOURCES
DESCRIPTION
Intended for MRI applications

Non-ferrous construction. 4” and 6” sealed downlight, round and square aperture options

Suitable for wet location installations, IP66 rated per IEC60598 and NSF2 Splash/Non-Food Zone listed. IC-Rated per UL 1598 Independently tested and certified to meet the MIL Spec 461G Fixed Navy/Air Force for Radiated and Conducted emissions

Variety of wattages and lumen packages, up to 4500 lumens

This product is Made in America and complies with Buy American Act requirements
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 6"
    L: 6"
  • Light Source
    LED
  • CCT/Color
    3000K3500K4000K5000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    14 W20 W27 W44 Wcustom
  • Lumens(Approx)
    1405 Lm2081 Lm2736 Lm4181 Lmcustom
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%0-10VDALI
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    UL/CULMade in USANSFBAA
  • Environment
    Antimicrobial FinishMRIIP65Healthcare General
  • Mounting Type
    Ceiling RecessedDrywall
  • Housing
    ICChicago Plenum
  • Housing Depth
    6.11 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
