CCF. COMPLETECARE FRAME WALL SCONCE SERIES.
Configure
Add to project




RESOURCES
DESCRIPTION

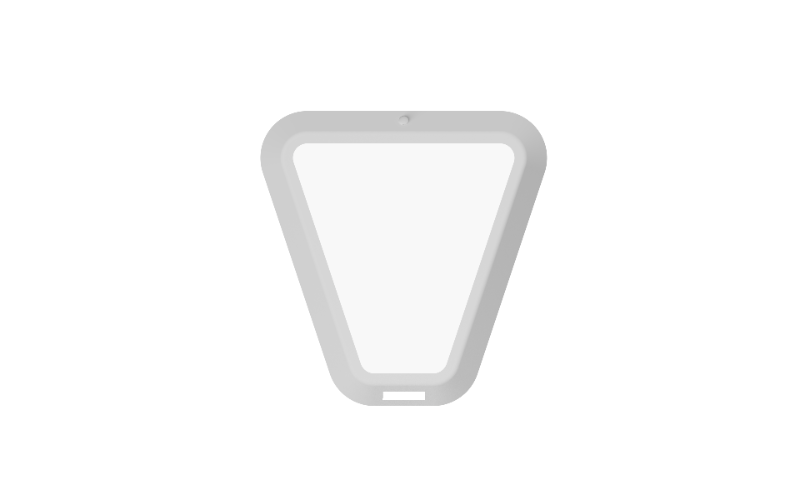

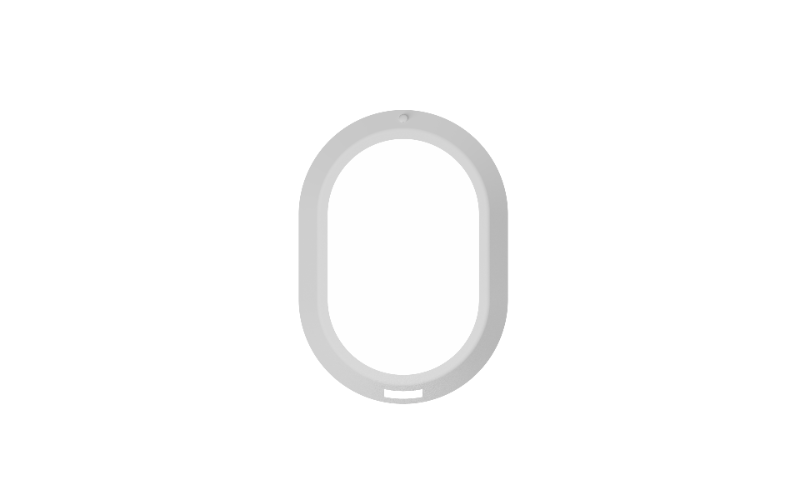

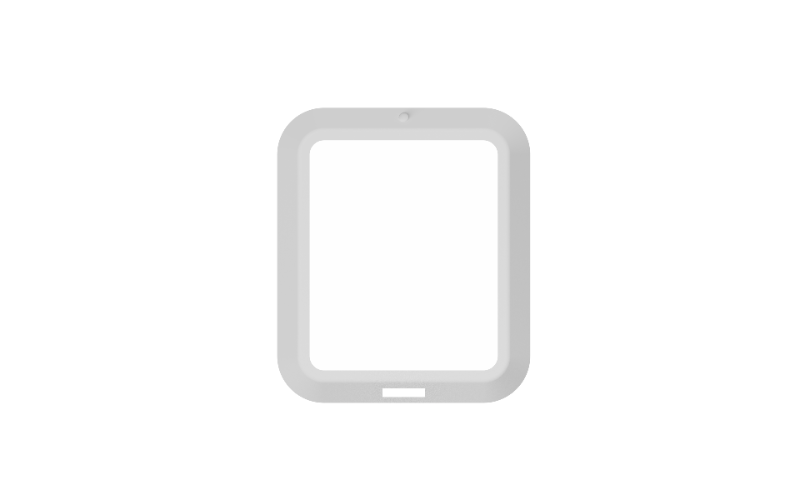

Available in a sleek 1" profile and multiple shape options, the Frame Series provides a more streamlined design aesthetic that matches the clean lines of today’s architecture. It’s IP64 listing makes it ideal for bathrooms, corridors, patient rooms and even building facades. The Frame can also accommodate graphic images for positive distraction applications like waiting rooms, MRI suites or lobbies.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.06"L: 11.89"10.92"13.39"H: 13.86"15.35"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K4500K5000KField Select CCT
- CRI80
- Watt(Approx)11 W
- Lumens(Approx)850 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentPatient RoomHealthcare General
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
CCF
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
