New Star Lighting
CCL-PL. COMPLETECARE PATIENT LINEAR SERIES.
 Configure
 Add to project

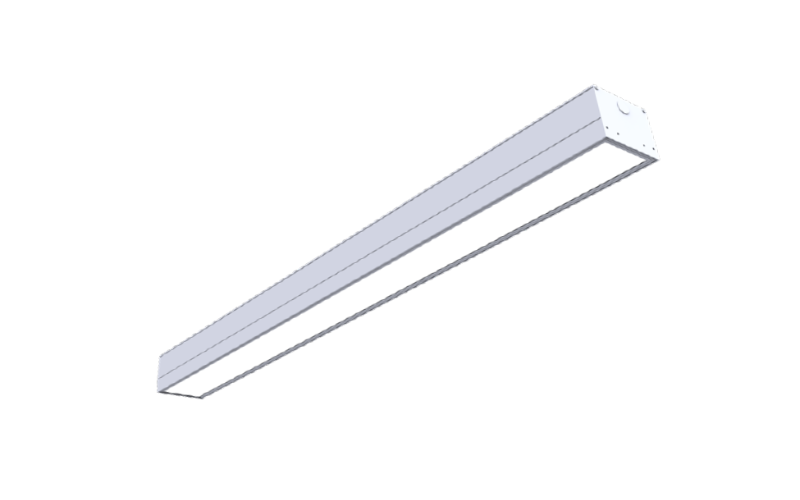

New Star Lighting. CCL-PL. COMPLETECARE PATIENT LINEAR SERIES.
New Star Lighting. CCL-PL. COMPLETECARE PATIENT LINEAR SERIES.
RESOURCES
DESCRIPTION
Intended for patient and exam rooms

Available in 4’ & 6’ lengths and ordered as a pair

One-piece, die-formed, tool-less access door with no visible room-side fasteners

Certified to UL standards by Intertek Testing Laboratory. IP65 rated per IEC60598. NSF2/Non-Food Zone Listed, IK10 Listed per IEC60068-2-75. IC-Rated housing.

This product is Made in America and complies with the Buy American Act (BAA), and the Build America, Buy America Act (BABAA)
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4.125"
    L: 4 Ft6 Ft
  • Light Source
    LED
  • CCT/Color
    3500K4000K5000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    25 W46 W
  • Lumens(Approx)
    2400 Lm4400 Lm
  • Optics
    DirectGeneral DiffusedAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%0-10VDALI
  • Controls/Network
    nLight®
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLMade in USABAA
  • Environment
    Antimicrobial FinishIP65Patient RoomHealthcare General
  • Mounting Type
    Ceiling RecessedDrywallTrimless DrywallT-Grid CeilingSlot T-Grid Ceiling
  • Housing
    ICChicago Plenum
  • Housing Depth
    3.75 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
