CCSLR. COMPLETECARE RECTANGLE STEPLIGHT SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION

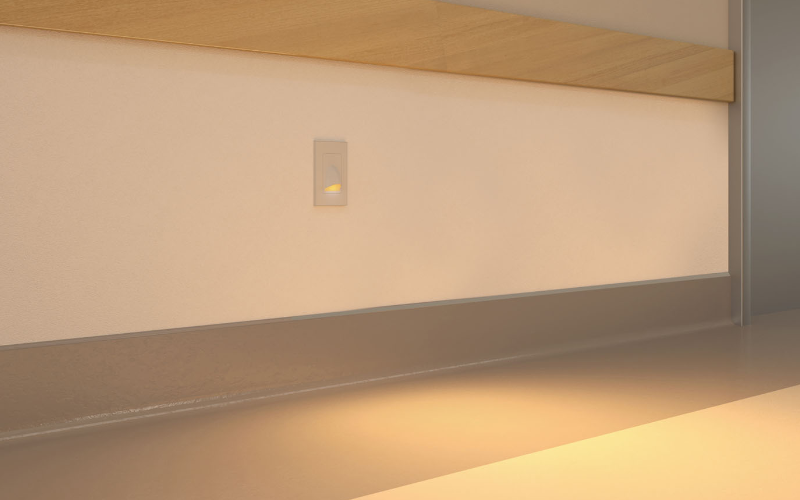

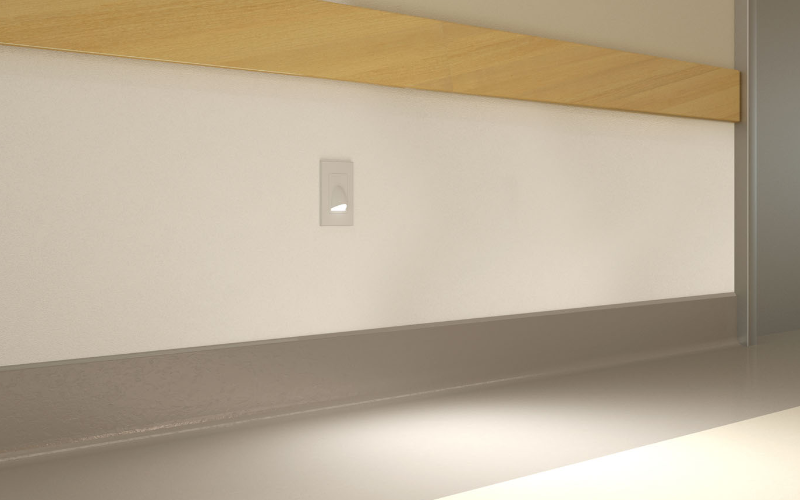

The CompleteCare Rectangle Steplight Series is available in a horizontal and vertical design and provide low level illumination for safe navigation. They are available in field-switchable White CCTs (2700K - 5000K), or Amber, Blue or Red colors. A field selectable sensor also features settings for photocell, motion sensing or an override. The units are designed to install to a standard J-Box or a thru-wall accessory.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.89"L: 3.7"5.51"H: 5.51"3.7"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K4500K5000KField Select CCTYellow/AmberRedBlue
- CRI80
- Watt(Approx)1 W
- Lumens(Approx)15 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance30000 h
- CertificatesETLADANSF
- EnvironmentAntimicrobial FinishHealthcare General
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
