New Star Lighting

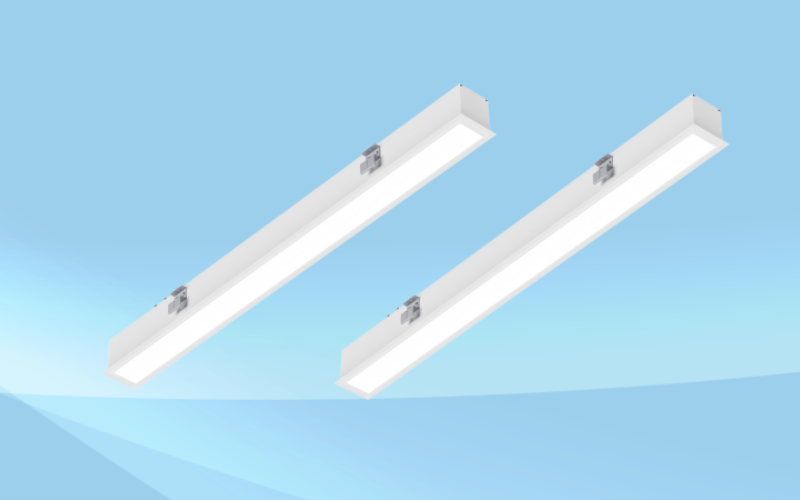

DCAL. DuraCare A-Line Multi-Functional Behavioral Health Patient Luminaire.
Configure
Add to project
RESOURCES
DESCRIPTION
Patient Comfort
The slim profile and offset mounting from the bed minimizes direct glare fostering a restful, therapeutic environment. A standard 90 CRI design and optional tunable white configurations support dynamic, human centered lighting for the patient.
Caregiver ready Performance
The Exam mode delivers IES RP29 compliant performance precisely where staff needs it while the true amber Nightlight mode support fall prevention while enabling the ability to monitor a patient without disrupting the circadian rhythm of the occupant.
Maintenance Friendly Serviceability
NSF Splash zone rated and finished in an anti-microbial powder coat, A-Line can be fully serviced from below the ceiling and features a quick release optical module for non-behavioral applications where maintenance efficiency is critical.
The slim profile and offset mounting from the bed minimizes direct glare fostering a restful, therapeutic environment. A standard 90 CRI design and optional tunable white configurations support dynamic, human centered lighting for the patient.
Caregiver ready Performance
The Exam mode delivers IES RP29 compliant performance precisely where staff needs it while the true amber Nightlight mode support fall prevention while enabling the ability to monitor a patient without disrupting the circadian rhythm of the occupant.
Maintenance Friendly Serviceability
NSF Splash zone rated and finished in an anti-microbial powder coat, A-Line can be fully serviced from below the ceiling and features a quick release optical module for non-behavioral applications where maintenance efficiency is critical.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.75"L: 4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000KTunable White
- CRI90
- Watt(Approx)180 Wcustom
- Lumens(Approx)15840 Lmcustom
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALI
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USANSFBAA
- EnvironmentAntimicrobial FinishPatient RoomHealthcare General
- Mounting TypeCeiling RecessedDrywall
- HousingNew Construction
- Housing Depth3.65 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeDCAL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
