DCDL. DURACARE BEHAVIORAL HEALTH DOWNLIGHT SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION
Ligature-resistant features to support Behavioral Health applications

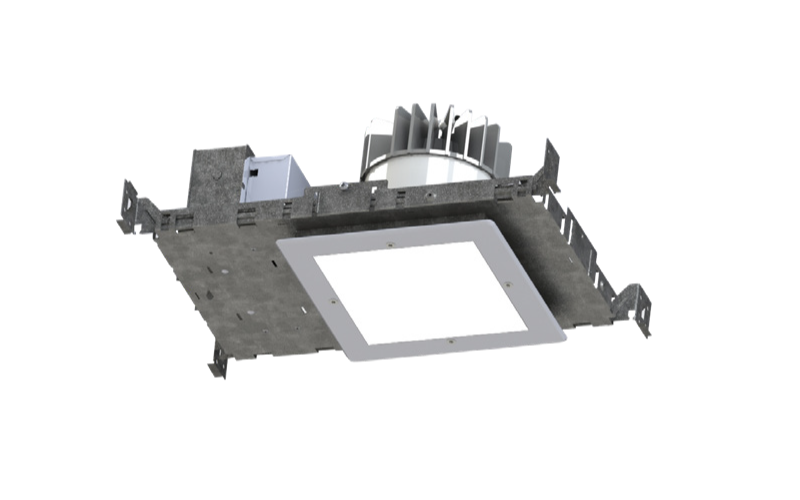

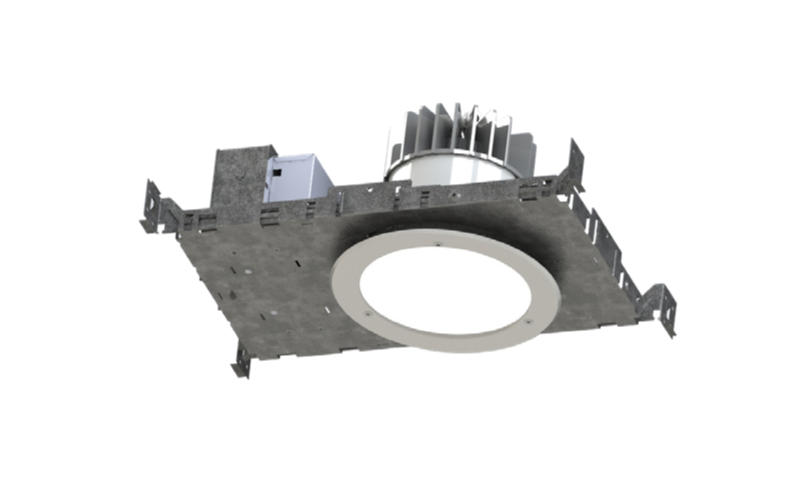

4” and 6” sealed recessed downlight, round or square aperture options
Suitable for non-IC and wet location installations, IK10 listed perIEC60068-2-75: 2014, and IP65 rated per IEC60598
Variety of wattages and lumen packages, up to 3750lm at 43W (6”)
This product is Made in America and complies with Buy American Act (BAA)
The DuraCare™ Behavioral Health Downlight from New Star Lighting is a sturdy and reliable lighting solution that provides ample illumination while maintaining a durable design.
4” and 6” sealed recessed downlight, round or square aperture options
Suitable for non-IC and wet location installations, IK10 listed perIEC60068-2-75: 2014, and IP65 rated per IEC60598
Variety of wattages and lumen packages, up to 3750lm at 43W (6”)
This product is Made in America and complies with Buy American Act (BAA)
The DuraCare™ Behavioral Health Downlight from New Star Lighting is a sturdy and reliable lighting solution that provides ample illumination while maintaining a durable design.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.5"5.62"8.15"8.11"L: 5.5"5.62"8.15"8.11"
- Light SourceLED
- CCT/Color3000K3500K4000K5000KTunable WhiteRGBWYellow/AmberBlue
- CRI90
- Watt(Approx)13.8 W14 W18 W20.3 W27.1 W21 W28 W43.7 W
- Lumens(Approx)1271 Lm1128 Lm1346 Lm1886 Lm1515 Lm1907 Lm2479 Lm3750 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CULMade in USANSFBAA
- EnvironmentIP65Healthcare General
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionIC
- Housing Depth5.5 ''6.11 ''
