New Star Lighting

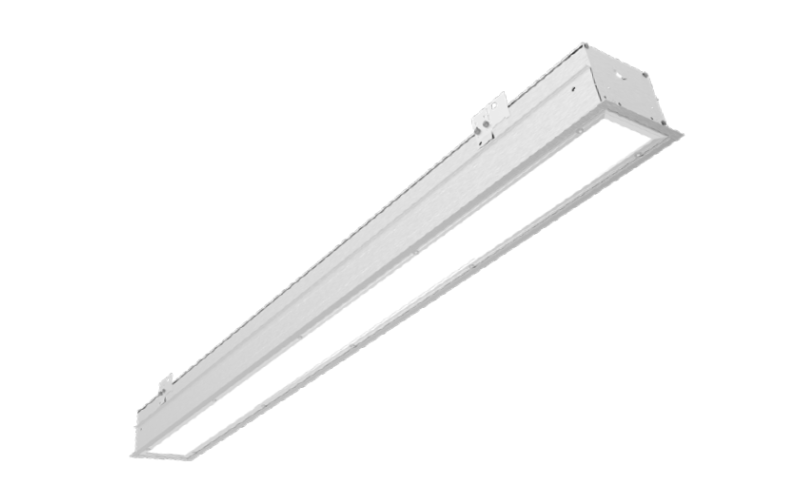

DCL-PL. DURACARE PATIENT LINEAR SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION
Ligature-resistant design intended for behavioral health applications Intended for patient and exam rooms
Available in 4’ & 6’ lengths and ordered as a pair
Extruded Aluminum housing and one piece, beveled fit aluminum door features continuous lens retention, integrated close cell gasketing and secured via tamper resistant Torx head fasteners
Certified to UL standards by Intertek Testing Laboratory. IP65 rated per IEC60598. NSF2/Non-Food Zone Listed, IK10 Listed per IEC60068-2-75. IC-Rated housing.
This product is Made in America and complies with the Buy American Act (BAA), and the Build America, Buy America Act (BABAA)
Available in 4’ & 6’ lengths and ordered as a pair
Extruded Aluminum housing and one piece, beveled fit aluminum door features continuous lens retention, integrated close cell gasketing and secured via tamper resistant Torx head fasteners
Certified to UL standards by Intertek Testing Laboratory. IP65 rated per IEC60598. NSF2/Non-Food Zone Listed, IK10 Listed per IEC60068-2-75. IC-Rated housing.
This product is Made in America and complies with the Buy American Act (BAA), and the Build America, Buy America Act (BABAA)
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.125"L: 4 Ft6 Ft
- Light SourceLED
- CCT/Color3500K4000K5000KTunable White
- CRI80 90
- Watt(Approx)25 W46 W
- Lumens(Approx)2400 Lm4400 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALI
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USABAA
- EnvironmentAntimicrobial FinishIP65Patient RoomHealthcare General
- Mounting TypeCeiling RecessedDrywallT-Grid CeilingSlot T-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth3.75 ''
