New Star Lighting

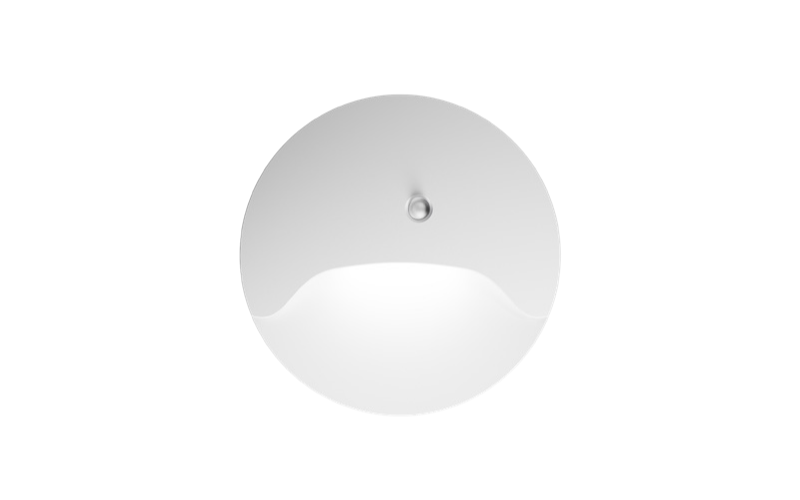

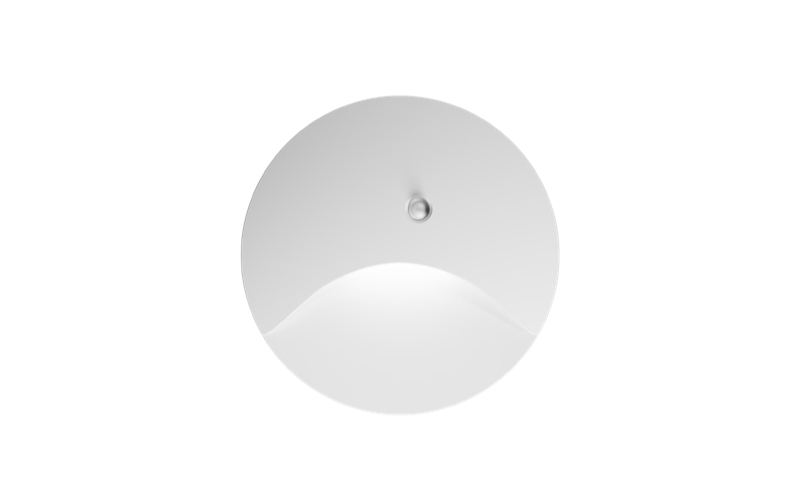

DCSLC. DURACARE ROUND STEPLIGHT SERIES.
 Configure
 Add to project
New Star Lighting. DCSLC. DURACARE ROUND STEPLIGHT SERIES.
New Star Lighting. DCSLC. DURACARE ROUND STEPLIGHT SERIES.
New Star Lighting. DCSLC. DURACARE ROUND STEPLIGHT SERIES.
RESOURCES
DESCRIPTION
Field-adjustable Amber (585nm-600nm), White (2700K-4000K), Blue (469nm-480nm), or Red (620nm-630nm) LED

90-degree cut-off obstructs light trespass

Built for durability; diecast faceplate with polycarbonate lens

Selectable Sensor with settings for Photo/Motion/Off (can be turned on or off during installation)

Pre-set light level can be adjusted up or down during installation

Installs to a standard J-Box (by others)

IK10 listed per IEC60068, IP64 rated per IEC60598, NSF2 Splash/Non-Food Zone listed
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 0.89"
    L: 5.51"
    H: 5.51"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K4500K5000KField Select CCTYellow/AmberRedBlue
  • CRI
    80
  • Watt(Approx)
    1 W
  • Lumens(Approx)
    15 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%0-10V
  • Controls/Network
    Integral Sensor
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    30000 h
  • Certificates
    ETLADANSF
  • Environment
    Antimicrobial FinishHealthcare General
  • Mounting Type
    Wall RecessedDrywall
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
