New Star Lighting
DCVM. DURACARE VANITY MIRROR SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION
Ligature-resistant vanity mirrors to support Behavioral Health or other high abuse bathroom applications

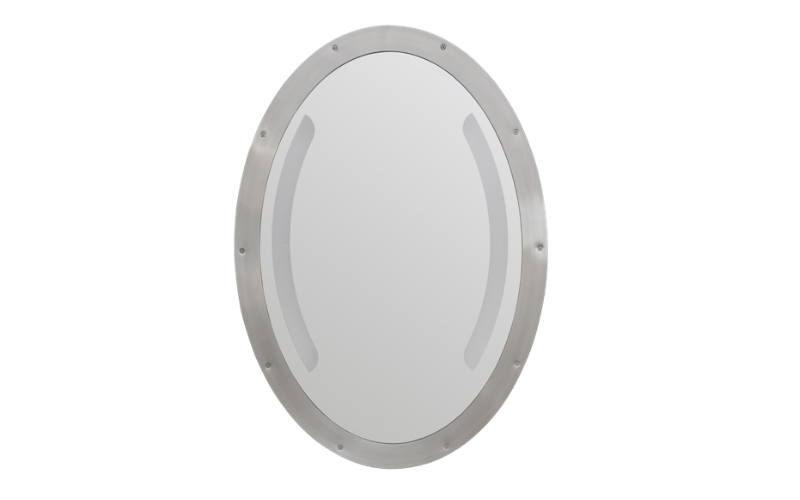

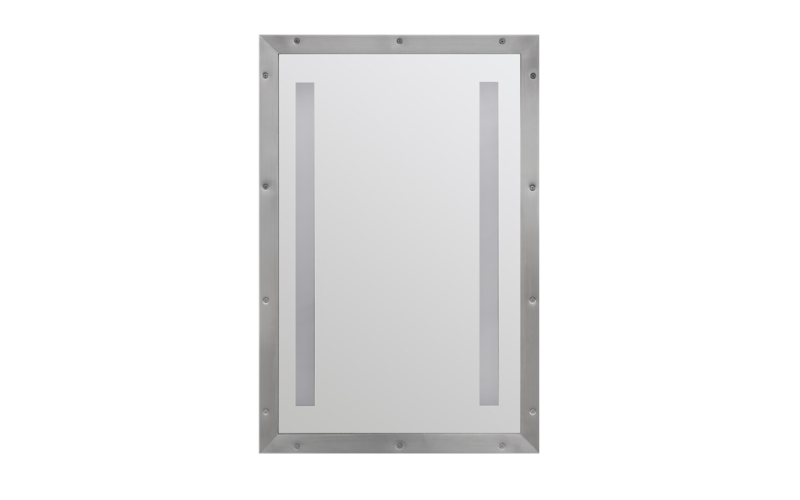

Low profile, semi-recessed mirror frame with tapered edges in rectangle or oval shapes secured with captive Torx® fasteners
Corrosion-resistant, copper-free mirror provides clear imaging, high reflectance, better color rendition and durability
LED Lighting with high color rendering (90 CRI), as well as red rendering (R9<61) for skin tone evaluation
Amber (585nm-590nm) or white (2700K-4000K) nightlight options
IK10 Listed per IEC60068-2-75, IP65 rated
Low profile, semi-recessed mirror frame with tapered edges in rectangle or oval shapes secured with captive Torx® fasteners
Corrosion-resistant, copper-free mirror provides clear imaging, high reflectance, better color rendition and durability
LED Lighting with high color rendering (90 CRI), as well as red rendering (R9<61) for skin tone evaluation
Amber (585nm-590nm) or white (2700K-4000K) nightlight options
IK10 Listed per IEC60068-2-75, IP65 rated
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: 20"23.9"H: 30"33.9"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KYellow/Amber
- CRI90
- Watt(Approx)40 W52 W
- Lumens(Approx)256 Lm458 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to <1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USANSFBAA
- EnvironmentAntimicrobial FinishHealthcare GeneralCorrosion Resistant
- Mounting TypeSemi-RecessedDrywall
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeDCVM
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
