New Star Lighting

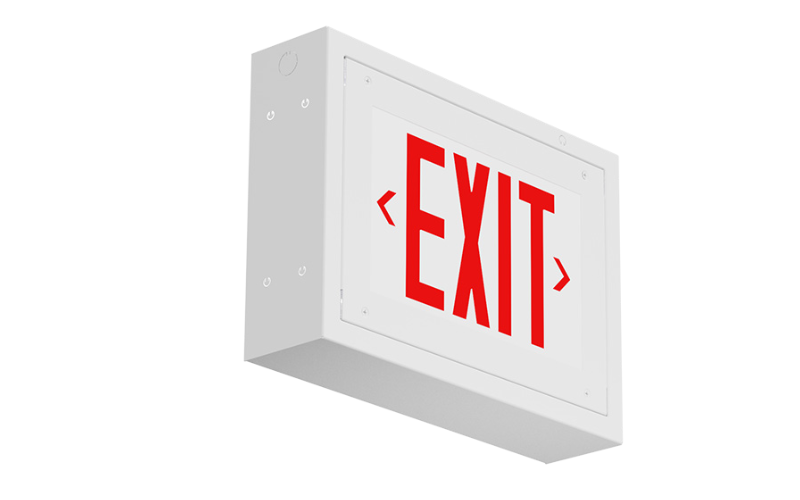

ESC-DC. DURACARE EXIT SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION
Vandal and tamper resistant design appropriate for a wide variety of complex environment applications
Ceiling-mount version ligature-resistant and suitable for medium-risk behavioral health applications when installed in conjunction with pick-proof caulk
Tamper-resistant Torx® center pin reject fasteners and sealed and gasketed .250 polycarbonate lens provides IK10 level impact resistance
Red or green legend, optional single or double face
Fixture is certified to UL standards for Wet Locations. IK10 listed per IEC60068. IP65 rated per IEC60598. UL924 Listed and meets or exceeds NFPA 101 Life Safety Code.
This product was Made in America and complies with the Buy American Act (BAA), and the Build America, Buy America Act (BABAA)
The DuraCare™ Exit Series is covered by our New Star Promise
Ceiling-mount version ligature-resistant and suitable for medium-risk behavioral health applications when installed in conjunction with pick-proof caulk
Tamper-resistant Torx® center pin reject fasteners and sealed and gasketed .250 polycarbonate lens provides IK10 level impact resistance
Red or green legend, optional single or double face
Fixture is certified to UL standards for Wet Locations. IK10 listed per IEC60068. IP65 rated per IEC60598. UL924 Listed and meets or exceeds NFPA 101 Life Safety Code.
This product was Made in America and complies with the Buy American Act (BAA), and the Build America, Buy America Act (BABAA)
The DuraCare™ Exit Series is covered by our New Star Promise
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.55"5.063"L: 16.375"15.38"H: 12"12.07"
- Light SourceLED
- CCT/Color
- CRI
- Watt(Approx)
- Lumens(Approx)
- OpticsDirectDirect View
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageIntegral120V277VUNC 347-480V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesETLMade in USABAA
- EnvironmentIP65
- Mounting TypeCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeESC-DC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
