New Star Lighting

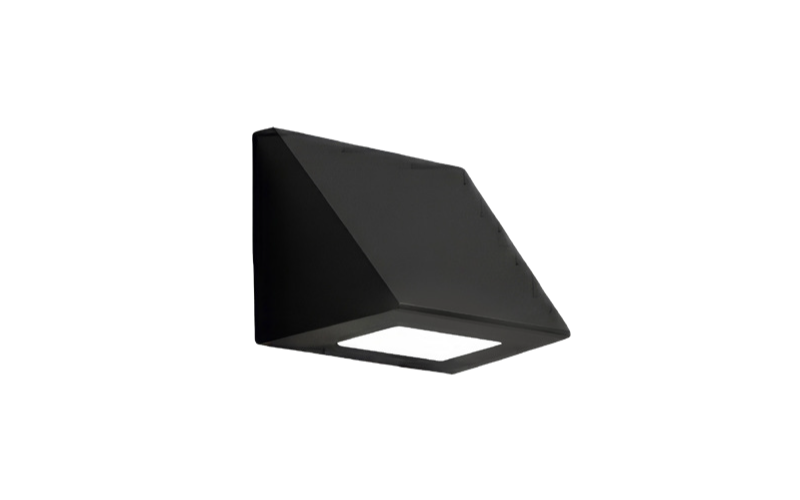

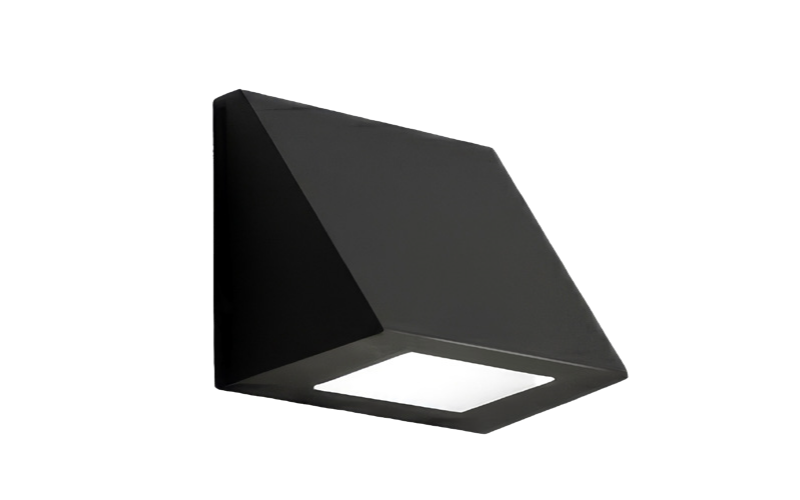

GEWP. GATEWAY WALL PACK SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION
Intended for Public Areas, Building Facades, Corridors, Stairways, Transportation Settings, Schools, and more

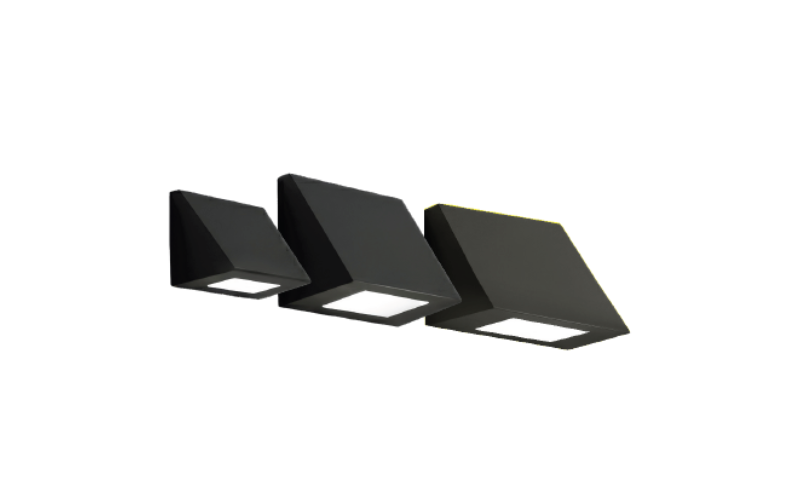

Available in three sizes, each with Type 2, 3, and 4 optic options
Up to 15,000 delivered lumens in the largest wall pack size
Tamper-resistant Torx® fasteners with center pin reject
IP65 Rated per IEC60598. IK10 Rated per IEC60068.
Available in three sizes, each with Type 2, 3, and 4 optic options
Up to 15,000 delivered lumens in the largest wall pack size
Tamper-resistant Torx® fasteners with center pin reject
IP65 Rated per IEC60598. IK10 Rated per IEC60068.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.4"6.88"L: 6.4"11.88"16.88"H: 5.6"9.8"
- Light SourceLED
- CCT/Color2700K3000K4000K5000K
- CRI80
- Watt(Approx)11 W15 W21 W44 W61 W74 W78 W96 W133 Wcustom
- Lumens(Approx)1500 Lm2000 Lm2700 Lm5500 Lm7500 Lm10000 Lm9000 Lm11000 Lm14000 Lmcustom
- OpticsDirectType IIType IIIType IV
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULBAA
- EnvironmentIP65
- Mounting TypeWall Surface
- Housing
- Housing Depth
