New Star Lighting
HADL. HIGH ABUSE DOWNLIGHT SERIES.
 Configure
 Add to project
New Star Lighting. HADL. HIGH ABUSE DOWNLIGHT SERIES.
New Star Lighting. HADL. HIGH ABUSE DOWNLIGHT SERIES.
New Star Lighting. HADL. HIGH ABUSE DOWNLIGHT SERIES.
RESOURCES
DESCRIPTION
Intended for vandal-prone applications including Public Areas, Schools, Locker Rooms, Corridors, Commercial Settings, and more

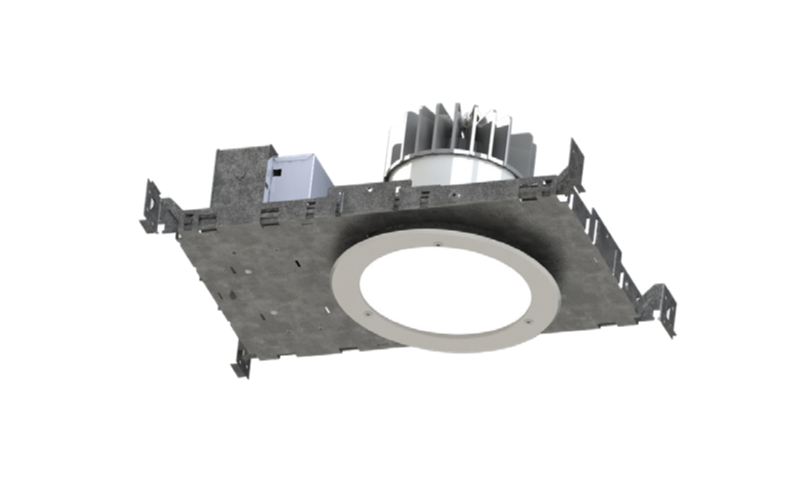

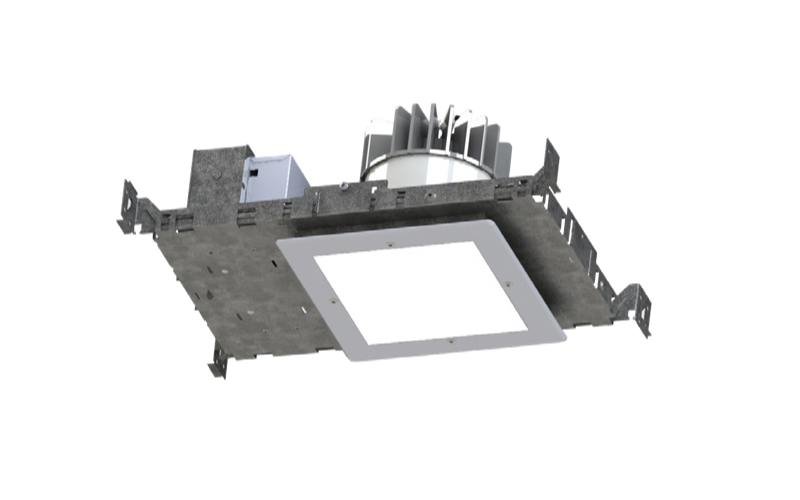

4” and 6” sealed recessed downlight, round or square aperture options

Suitable for non-IC and wet location installations, IK10 listed per IEC60068-2-75: 2014, and IP65 rated per IEC60598

Variety of wattages and lumen packages, up to 6000 lumens (6")

This product is Made in America and complies with Buy American Act (BAA)
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 5.5"5.62"8.15"8.11"
    L: 5.5"5.62"8.15"8.11"
  • Light Source
    LED
  • CCT/Color
    3000K3500K4000K5000KTunable WhiteRGBWYellow/AmberBlue
  • CRI
    90
  • Watt(Approx)
    13.8 W14 W18 W20.3 W27.1 W21 W28 W43.7 W
  • Lumens(Approx)
    1271 Lm1128 Lm1346 Lm1886 Lm1515 Lm1907 Lm2479 Lm3750 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALI
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    UL/CULMade in USANSFBAA
  • Environment
    IP65VandalproofHealthcare General
  • Mounting Type
    Ceiling RecessedDrywallT-Grid Ceiling
  • Housing
    New Construction
  • Housing Depth
    5.5 ''6.11 ''
