New Star Lighting

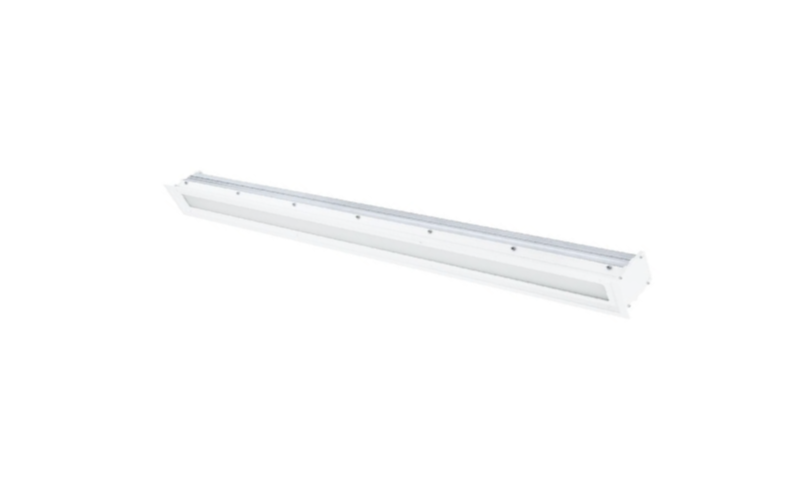

HALW. HIGH ABUSE LINEAR WALL SERIES.
 Configure
 Add to project
New Star Lighting. HALW. HIGH ABUSE LINEAR WALL SERIES.
New Star Lighting. HALW. HIGH ABUSE LINEAR WALL SERIES.
RESOURCES
DESCRIPTION
Intended for Public Areas, Corridors, Stairways, Underpasses, Parking Garages, Restrooms, Lobbies, Schools, and more

Designed for recessed wall installations

One-piece doorframe with continuous lens retention and tamper-resistant fasteners

Certified to UL standards by Intertek Testing Laboratory. IP65 rated per IEC60598. NSF2/Non-Food Zone Listed, IK10. Listed per IEC60068-2-75

This product is Made in America and complies with the Buy American Act requirements
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    L: 2'3'4'6'8'
    H: 4.95"4.125"
  • Light Source
    LED
  • CCT/Color
    3000K3500K4000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    5.26 W/Ft12.43 W/Ft
  • Lumens(Approx)
    500 Lm/Ft1181 Lm/Ft
  • Optics
    DirectGeneral DiffusedAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%0-10VDALI
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLMade in USANSFBAA
  • Environment
    Antimicrobial FinishIP65
  • Mounting Type
    Wall RecessedDrywallTrimless Drywall
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
