New Star Lighting

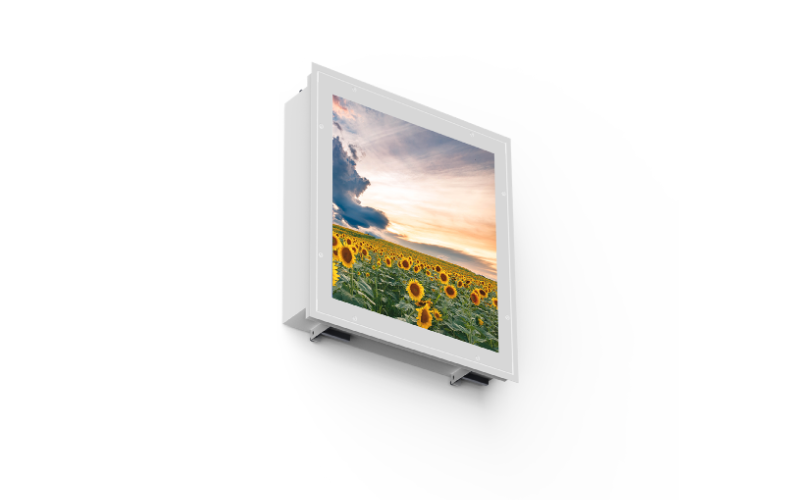

LOOK. POSITIVECARE LOOKOUT MRI SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION
The PositiveCare Lookout Series provides an opportunity to transform a confined indoor environment to into an open, inviting, and therapeutic one. Whether Biophilic or Immersive Art, select from a collection of imagery that can create new windows into how occupants interact with their space.
Intended for MRI/Imaging Suites
Available in a 1x4, 2x2, 2x4, consult factory for additional custom sizing
4” Depth for typical interior wall applications with exterior access to all serviceable components
Integrated leveling capability for constructed window apertures with aluminum window frame available in multiple finishes
Fixture is certified to UL standards for Wet Locations and meets or exceeds NFPA 101 Life Safety Code. IP65 (room-side only) Rated per IEC60598. NSF2 Splash/Non-Food Zone listed.
This product was Made in America and complies with the Buy American Act (BAA)and the Build America, Buy America Act (BABAA)
Intended for MRI/Imaging Suites
Available in a 1x4, 2x2, 2x4, consult factory for additional custom sizing
4” Depth for typical interior wall applications with exterior access to all serviceable components
Integrated leveling capability for constructed window apertures with aluminum window frame available in multiple finishes
Fixture is certified to UL standards for Wet Locations and meets or exceeds NFPA 101 Life Safety Code. IP65 (room-side only) Rated per IEC60598. NSF2 Splash/Non-Food Zone listed.
This product was Made in America and complies with the Buy American Act (BAA)and the Build America, Buy America Act (BABAA)
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: 1 Ft2 FtH: 2 Ft4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K5000KTunable White
- CRI90
- Watt(Approx)40 W80 W
- Lumens(Approx)
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USANSFBAA
- EnvironmentMRIIP65Healthcare General
- Mounting TypeWall RecessedDrywall
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLOOK-MRI
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
