New Star Lighting
PCOG. POSITIVECARE OVERLAPPING GRID SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION

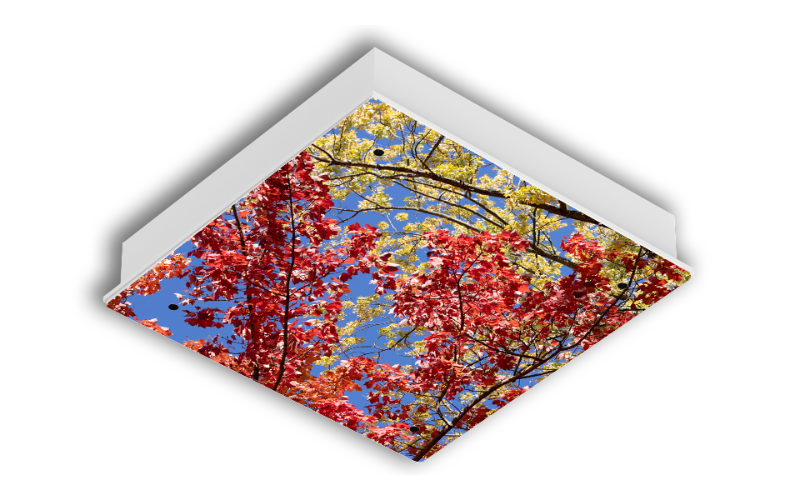

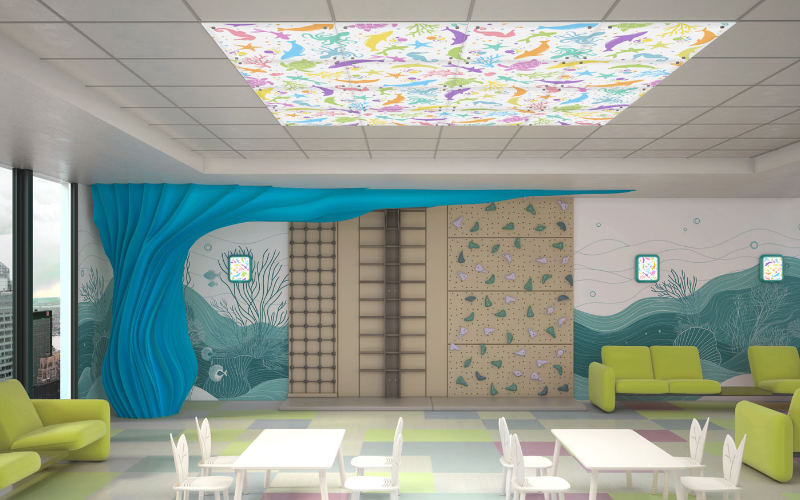

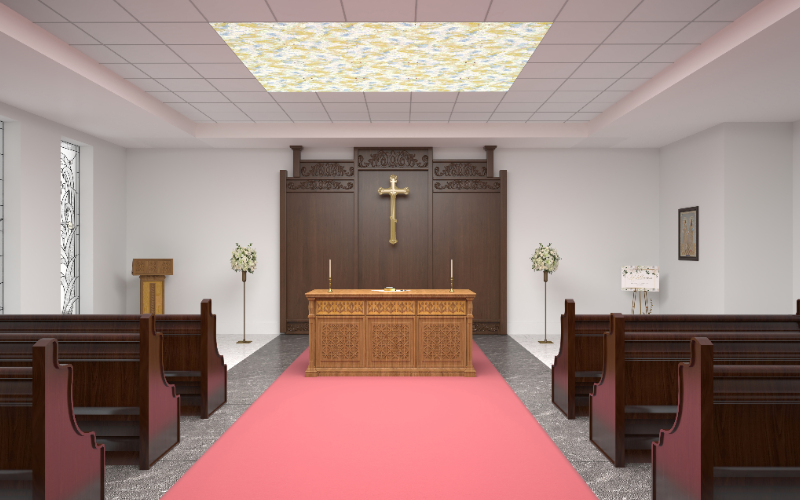

The Overlapping Grid family includes 2x2, 2x4 and 4x4 dimensions and designed to give the look of a luminous ceiling without the hassle. The lenses overlap the grid, eliminating the need for bulky doorframes that break up a mural. Ideal for waiting rooms, nurses’ stations, chapels, pediatric areas, and more.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2'4'L: 2'4'
- Light SourceLED
- CCT/Color3000K3500K4000K5000KTunable White
- CRI80
- Watt(Approx)
- Lumens(Approx)
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USABAA
- EnvironmentDampHealthcare General
- Mounting TypeCeiling RecessedDrywallT-Grid CeilingSlot T-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth7 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePCOG
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
