NERI NORTH AMERICA

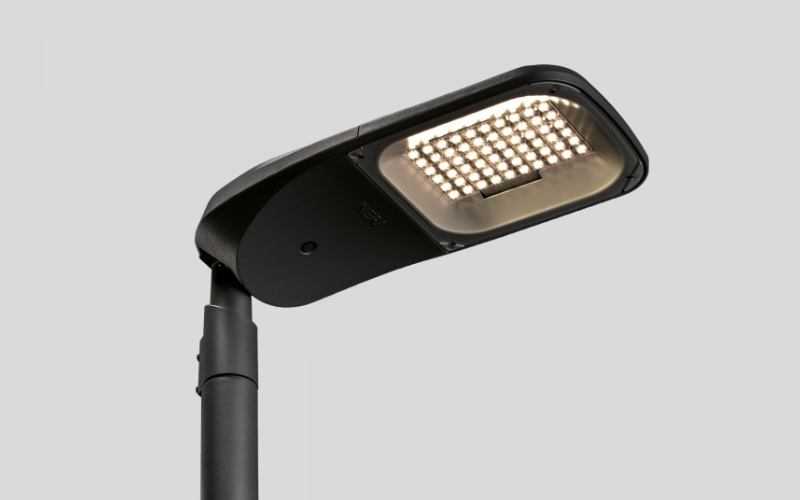

LUANT00. Antares S.
Configure
Add to project
RESOURCES
DESCRIPTION
Antares encompasses design, visual comfort, performance and energy savings in a single luminaire. With an optical technology that allows to reach extremely high performance, thanks to its adjustable inclination joint, maximum flexibility is guaranteed.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 13 3/8"L: 23 7/8"28 1/8"H: 10 2/8"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI70
- Watt(Approx)17.2 W24.4 W32.1 W42.2 W53.6 W65.8 W71.6 W
- Lumens(Approx)2500 Lm3500 Lm4500 Lm6000 Lm7500 Lm9000 Lm10500 Lm
- OpticsDirectAsymmetric/WashType IIType IIIType IVType V
- AdjustableAdjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULDark SkyBAA
- EnvironmentIP66
- Mounting TypePole/Mast ArmPole/Post Top
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
