North Star Lighting

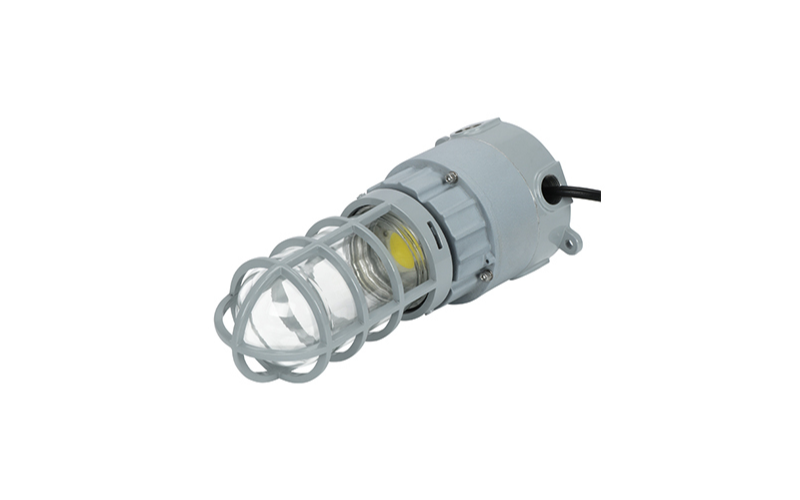

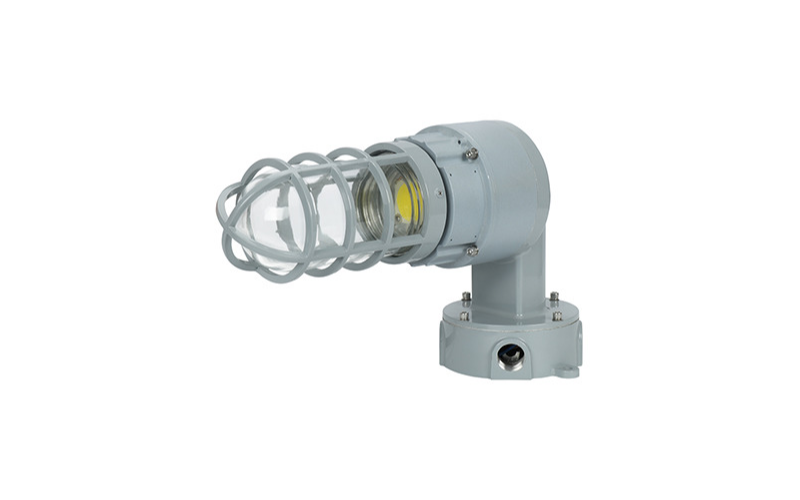

EX. Type EX-O - Jelly Jar - Class 1, Div. 2.
Configure
Add to project
RESOURCES
DESCRIPTION
The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 50,000 hour rated life span with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and require less hardware to install.
This Luminaire can be utilized as general illumination and can be pole, wall or ceiling mounted. Recommended for Locations with high humidity, temperature and large amounts of vapor and dust particles. Such as:
This Luminaire can be utilized as general illumination and can be pole, wall or ceiling mounted. Recommended for Locations with high humidity, temperature and large amounts of vapor and dust particles. Such as:
- Petroleum Production & Refining
- Petroleum Loading & Transport
- Petroleum Storage & Retail
- Paint Facilities
- Pumping Stations
- Metal Smelting, Foundry and Fabrication
- Mining Operations & Service
- Ocean Platform Operational Facilities & Structure
- Aerospace clean Room and Production
- Chemical Production & Storage
- Ocean Vessel Operations
- Military Spec. Conditions
- Flour & Fine Particle Production and Storage
- Food & Distilling Production
- Electrical Power Generation & Stations
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.32"L: 5.32"8.78"H: 10.96"12.83"
- Light SourceLED
- CCT/Color2700K3000K4000K5000K
- CRI80
- Watt(Approx)10 W20 W30 W
- Lumens(Approx)1400 Lm2800 Lm4200 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%Non-Dim
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentClean RoomIP66MarineFood Processing
- Mounting TypePendantCeiling SurfaceWall Arm/Cantilever
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeEX-O
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
