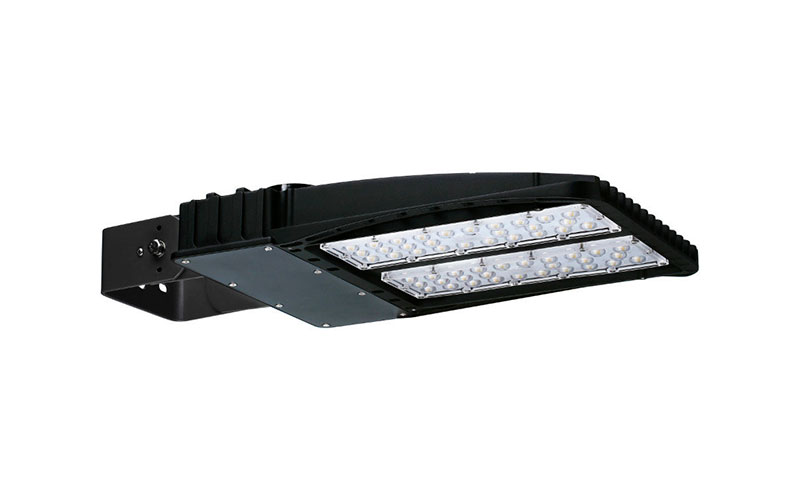

SMA-V. Smart Area Light 150/200W.
Configure
Add to project
RESOURCES
DESCRIPTION
The 150/200 watt Smart™ Area is designed to replace HID light sources of up to 400 watts. This is accomplished with sealed high brightness light modules with precision control TIR type optics.
Construction
Housing is die-formed made from low-copper 5052 aluminum, heavy duty, structurally rigid and vibration resistant. Heatsink fins are 0.040” thick made from low copper aluminum 5052 alloy with maximum contact with the housing for maximum heat dissipating surface area for the efficient cooler operation. Five available mounting options. Suitable for Wet Locations.
Construction
Housing is die-formed made from low-copper 5052 aluminum, heavy duty, structurally rigid and vibration resistant. Heatsink fins are 0.040” thick made from low copper aluminum 5052 alloy with maximum contact with the housing for maximum heat dissipating surface area for the efficient cooler operation. Five available mounting options. Suitable for Wet Locations.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 11.2"L: 16.6"H: 3.4"
- Light SourceLED
- CCT/Color2700K3000K4000K5000K
- CRI70
- Watt(Approx)150 W200 W
- Lumens(Approx)15000 Lm20000 Lm
- OpticsDirectType IIType IIIType V
- AdjustableAdjustable
- DimmingDim to 3-10%Non-Dim
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V480V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULDLC*
- EnvironmentDampIP65IP67
- Mounting TypePole/Mast ArmWall SurfaceTrunnion
- Housing
- Housing Depth
