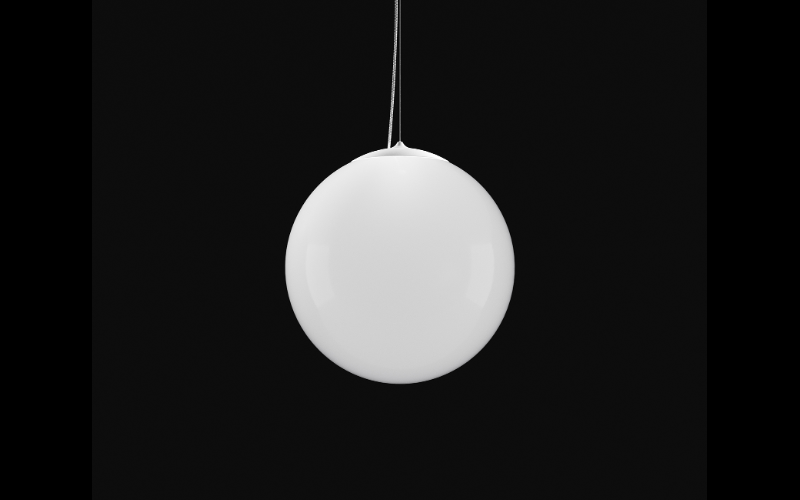

AA1. Atla™ PENDANT.
Configure
Add to project
RESOURCES
DESCRIPTION
- Available in 7 diameters: 6", 8", 10", 12", 14", 18", and 22"
- Up to 4200+ delivered lumens (22" size)
- Available in 90+ CRI with 2700K, 3000K, 3500K, and 4000K CCT options
- Precision LED light engine delivers uniform diffuser illumination and consistent surface luminance across all sizes, supporting visual uniformity in single and multi-fixture applications
- Seamless molded acrylic diffuser provides uniform illumination
- Multiple mounting options: surface canopy or flat canopy (recessed junction box)
- Universal voltage (120–277V)
- Standard 0–10V dimming (1%)
- UL damp location listed (ULD option)
- Standard, modified, multi-drop, and custom configurations available
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6"8"10"12"14"18"22"L: 6"8"10"12"14"18"22"H: 6.5"8.75"11"12.75"15"18.75"23"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)4 W6 W9 W13 W16 W26 W42 W
- Lumens(Approx)310 Lm590 Lm900 Lm1485 Lm1990 Lm2965 Lm4230 Lm
- OpticsOmni-DirectionalGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance185000 h104000 h
- CertificatesETLRoHS
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
