OCL Architectural Lighting (Legrand)

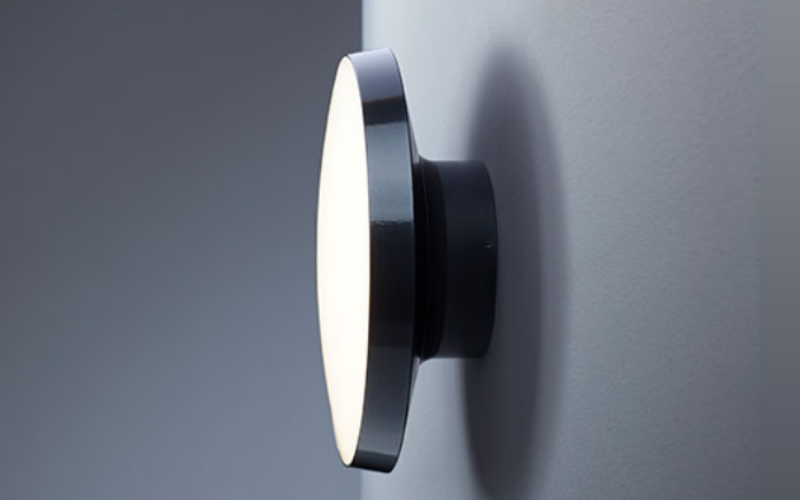

CT1. CENTRO SCONCE.
Configure
Add to project
RESOURCES
DESCRIPTION
- Die-cast aluminum housing with thread-in diffuser
- Fixture is ADA compliant
- Up to 110 l/w delivered
- Performance diffuser allows high transmission and zero LED imaging
- Integral LED drivers
- Field replaceable LEDs and drivers
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 14"L: 14"H: 3.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)15 W25 W
- Lumens(Approx)1650 Lm2750 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10VLutron Hi-lume EcoSystem (LDE1)
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLADARoHS
- EnvironmentDampIP66
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCT1-S
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
