OCL Architectural Lighting (Legrand)

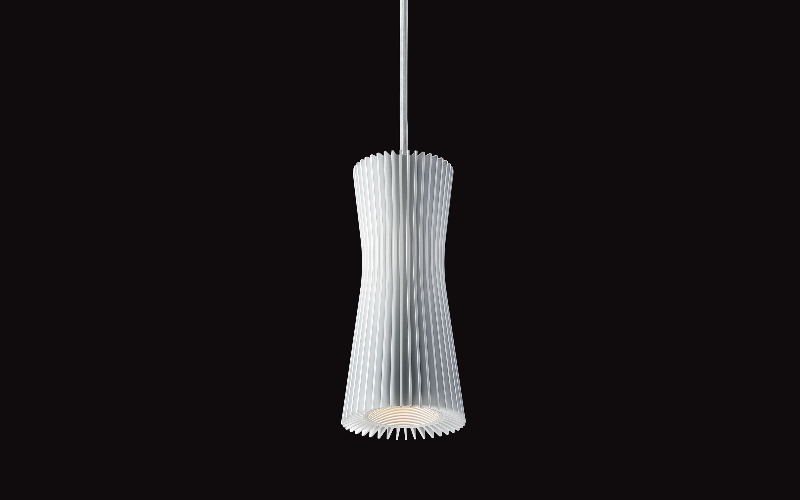

FR1. FIORI PENDANT.
Configure
Add to project
RESOURCES
DESCRIPTION
- Numerous secondary lens options available.
- Field replacement for LED array and driver.
- 45° cutoff and stepped bezel minimizes glare and increases visual comfort.
- Excellent thermal management is achieved through an extruded and machined aluminum fixture body.
- 3 step color binning
- Varying beam spread options are available: Narrow Flood [24 degree] or Wide Flood [50 degree].
- Contact factory for additional modifications or options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6"L: 6"H: 13"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)16 W26 W37 W
- Lumens(Approx)1500 Lm2135 Lm2855 Lm
- OpticsDirectMediumWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VLutron Hi-lume EcoSystem (LDE1)
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLRoHSBAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFR1-P
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
