OCL Architectural Lighting (Legrand)
IN1. Intrigue OUTDOOR.
Configure
Add to project
RESOURCES
DESCRIPTION

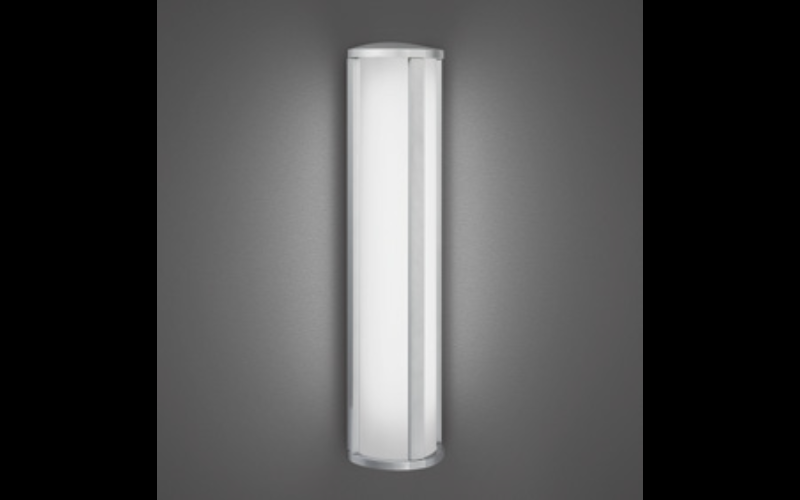

- The Intrigue sconce features solid aluminum die-cast ends with a domed top and a distinctive tapering arch design
- Hinged front face simplifies maintenance
- 0.125” thick, matte anodized, aluminum extruded back channel
- Features 1.0” wide by 0.375” thick extruded aluminum front bar with optional slit cutout
- 3/16” thick extruded virgin white acrylic is 45% DR high impact, UV stable, F1 rated, and UL-94 HB Flame Class rated
- Intrigue can be mounted vertically or horizontally
- Contact factory for additional modifications or options
- Fixture is ADA compliant
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: 6"H: 18"24"36"48"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)20 W30 W25 W35 W45 W65 W60 W80 W
- Lumens(Approx)1050 Lm1350 Lm1600 Lm2000 Lm2600 Lm3700 Lm3250 Lm4600 Lm
- OpticsOmni-DirectionalGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USAADARoHS
- EnvironmentWet
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
