OCL Architectural Lighting (Legrand)
MB. Mobi ACOUSTIC PENDANT.
 Configure
 Add to project

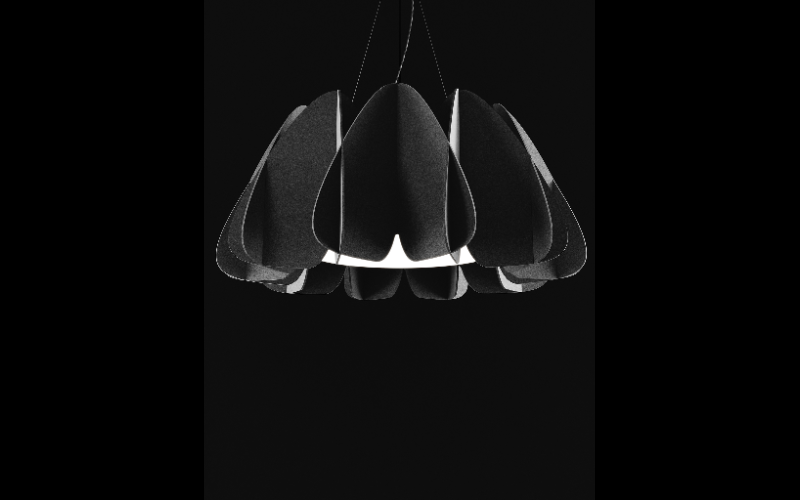

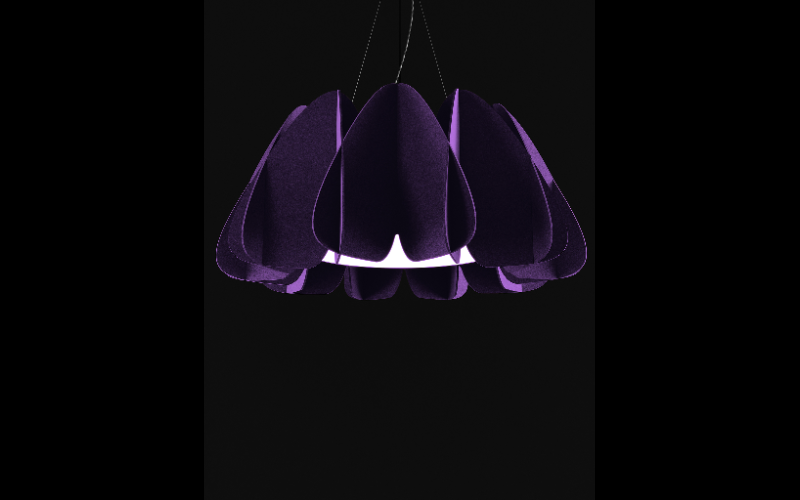

OCL Architectural Lighting. MB. Mobi ACOUSTIC PENDANT.
OCL Architectural Lighting. MB. Mobi ACOUSTIC PENDANT.
OCL Architectural Lighting. MB. Mobi ACOUSTIC PENDANT.
OCL Architectural Lighting. MB. Mobi ACOUSTIC PENDANT.
RESOURCES
DESCRIPTION
  • Combination of the Cirque drum and 9mm sound-absorbing acoustic fins
  • Available in 31", 46", and 63" diameters
  • Available in direct and direct/indirect illumination options
  • Delivers up to 16,705 lumens with efficacy up to 113 lm/W
  • Precision-rolled aluminum housing with fully luminous acrylic diffuser
  • Proprietary 90+ CRI LED light engine designed for smooth, even illumination across the entire diffuser surface
  • Optional dual circuiting provides independent switching and dimming of direct and indirect illumination
  • 20+ acoustic color options available
  • Universal voltage (120–277V)
  • Standard 0–10V dimming to 1%
  • Field-replaceable LED driver components
  • Acoustic felt contains minimum 50% recycled post-consumer material
  • BAA / BABA compliant
  • This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 32.875"41.125”64"
    L: 32.875"41.125”64"
    H: 15.175"20.125"30.25"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    90
  • Watt(Approx)
    12 W20 W29 W31 W49 W68 W
  • Lumens(Approx)
    1165 Lm2015 Lm2845 Lm3245 Lm5250 Lm7150 Lm
  • Optics
    DirectDirect/IndirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 1%0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    190000 h185000 h
  • Certificates
    ETLMade in USARoHS
  • Environment
    Acoustic Absorption
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
