OCL Architectural Lighting (Legrand)

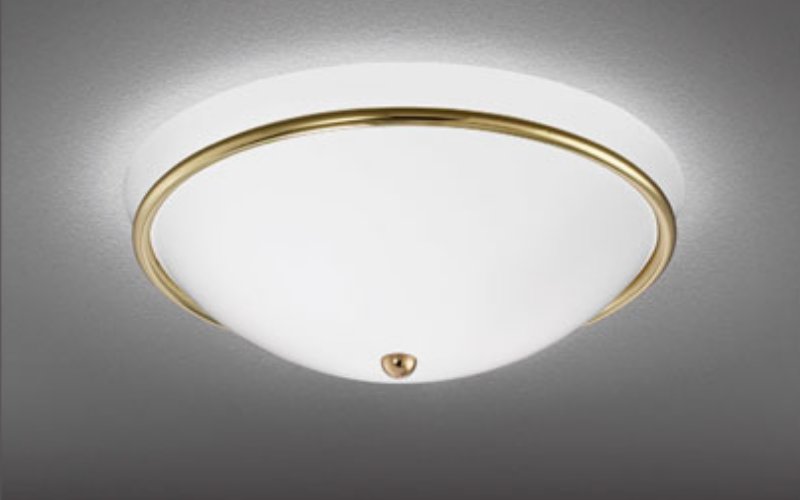

MN1. MONACO CEILING.
Configure
Add to project
RESOURCES
DESCRIPTION
- The Monaco features a shallow acrylic diffuser accented by a rolled brass or aluminum ring.
- Constructed with solid, non-ferrous brass or aluminum
- Its transitional design makes the Monaco a welcome piece for both contemporary and traditional applications
- Thermally formed acrylic ranges from 3/16” to 1/4” thick, depending on size. Virgin white acrylic is UV stable, and all faux acrylic colors are mixed completely through to avoid noticeable fading
- White acrylic is UL-94 HB Flame Class rated
- OCL metal finishes are applied by hand and receive a protective clear coat
- Contact factory for additional modifications or options
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 16"19"23"L: 16"19"23"H: 5.5"6"7"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80
- Watt(Approx)25 W
- Lumens(Approx)1250 Lm
- OpticsOmni-DirectionalGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USA
- Environment
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMN1-C
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
