OCL Architectural Lighting (Legrand)

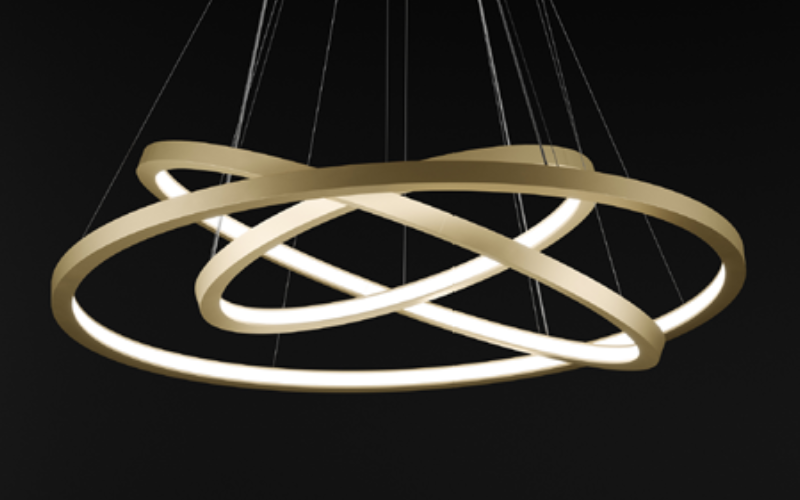

RV. Rev Cluster PENDANT.
Configure
Add to project
RESOURCES
DESCRIPTION
- Inner or outer Illumination ring cluster in five standard luminaire configurations
- Minimal 1.75" square extruded aluminum profile size
- Extruded silicone lens creates a crisp & uniform appearance with no visible seam, no diode imaging or zero light leaks from expansion and contraction
- 3-step LED binning
- Custom sizes, number of rings, and various shapes are available as modifications
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 36"48"60"L: 36"48"60"H: 10"13.5"12.5"16.5"15.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)55 W75 W95 W90 W80 W100 W130 W120 W135 W125 W155 W210 W160 W215 W
- Lumens(Approx)2450 Lm2910 Lm3420 Lm4400 Lm4070 Lm4100 Lm4960 Lm5880 Lm5410 Lm5340 Lm5300 Lm6530 Lm7080 Lm7040 Lm9540 Lm7070 Lm8530 Lm11500 Lm
- OpticsOmni-DirectionalGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesETLRoHSBAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeRV-CL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
