OCL Architectural Lighting (Legrand)

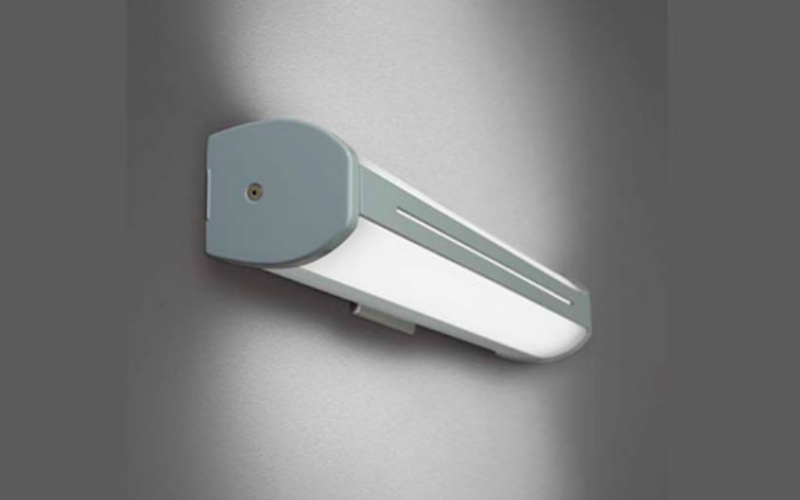

VAP1. Vapor SCONCE.
Configure
Add to project
RESOURCES
DESCRIPTION
- The Vapor features an extruded aluminum back channel 2.50” wide and 0.125” thick with a matte anodized protective coating
- Features solid aluminum die-cast ends
- 0.08” thick aluminum decorative bar with slit cutout
- 3/16” thick extruded virgin white acrylic is 45% DR high impact, UV stable, F1 rated, and UL-94 HB Flame Class rated
- Vapor can be mounted vertically or horizontally
- Tamper-proof stainless steel screws available as an option
- Contact factory for additional modifications or options
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: 24"36"48"60"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)15 W20 W25 W30 W35 W40 W55 W
- Lumens(Approx)800 Lm1000 Lm1250 Lm1550 Lm1650 Lm2100 Lm2650 Lm
- OpticsOmni-DirectionalGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USAADA
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeVP1-S
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
