FHZR. Class I Div 2 LED Luminaires.
Configure
Add to project
RESOURCES
DESCRIPTION

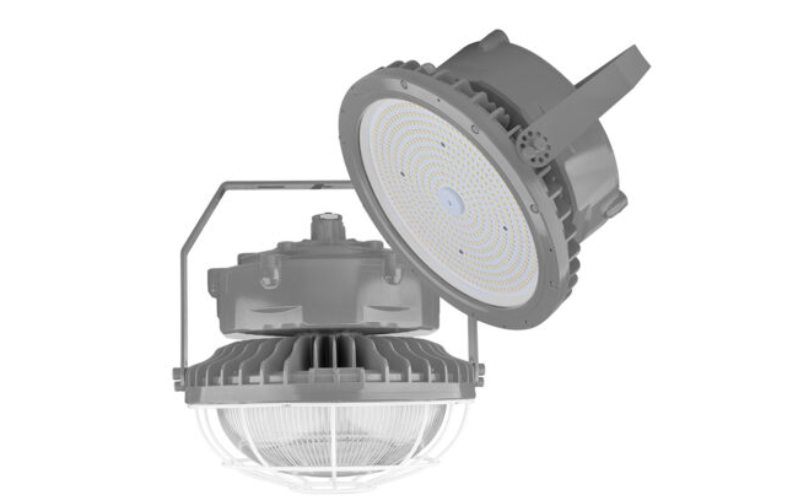

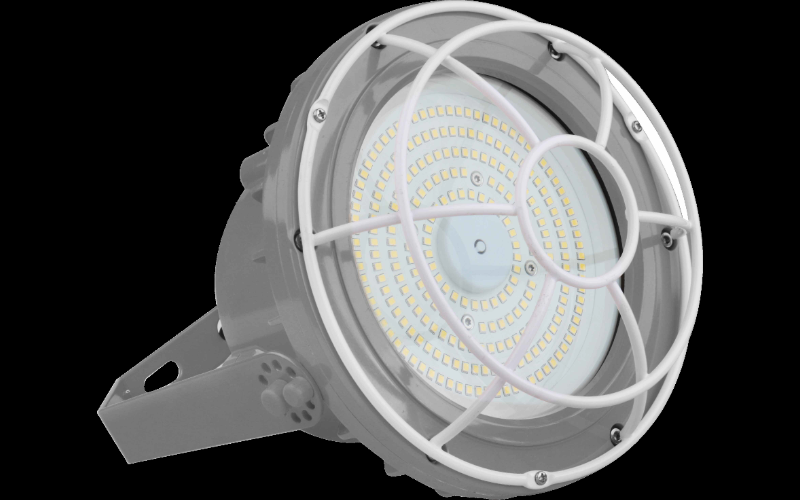

The FHZR series is UL Listed Class I, Division 2, Group A, B, C, D hazardous location lights for industrial applications, and comes with IP66, UL 1598, UL 8750 and UL 844 ratings. Rugged construction ensures its long-life and safe operation. It runs much cooler than equivalent incandescent and metal halide fixtures, can be used in hazardous area that has a lower ignition temperature threshold.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7 11/16"12 13/16"L: 7 11/16"12 13/16"H: 5 15/16"8 1/4"
- Light SourceLED
- CCT/Color3000K4000K5000K5700K6500K
- CRI80
- Watt(Approx)60 W100 W150 W
- Lumens(Approx)8400 Lm15000 Lm23250 Lm
- OpticsDirectGeneral Diffused
- AdjustableAdjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V277VUNC 347-480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULRoHS
- EnvironmentIP66Hazardous
- Mounting TypePendantCeiling SurfaceWall SurfaceTrunnion
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFHZR
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
