Pa-Co Lighting

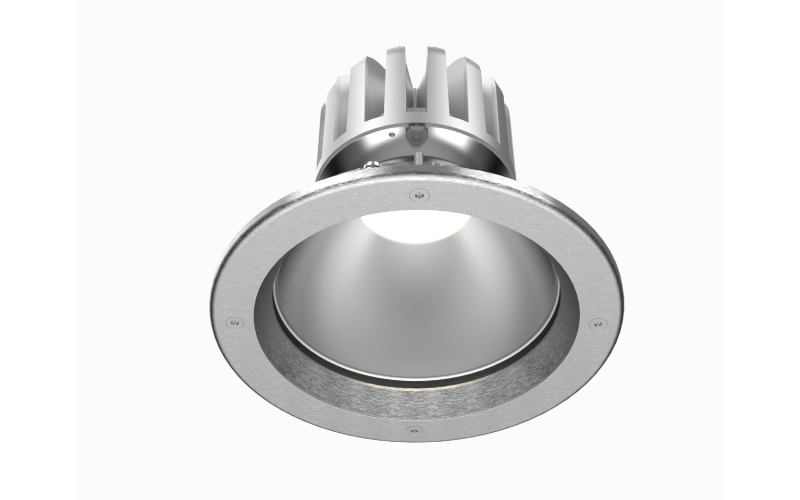

MDA6. IMPACT RESISTANT 6'' SEALED DOWNLIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
- Minimum 80 CRI; colour range 2700K - 5000K available
- Multiple dimming protocols available
- Tunable White option available
- Coloured LED boards optional (white, red, amber)
- IP65 for recessed applications
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.04"L: 8.04"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable White
- CRI80 90
- Watt(Approx)7 W13 W26 W39 W53 W
- Lumens(Approx)300 Lm500 Lm1000 Lm2000 Lm3000 Lm2300 Lm4000 Lm
- OpticsDirectFloodAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10VDALI
- Controls/Network
- Power/VoltageIntegral120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentAntimicrobial FinishIP65VandalproofHealthcare General
- Mounting TypeCeiling RecessedDrywall
- HousingNew ConstructionChicago Plenum
- Housing Depth6.15 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMDA6
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
