Pa-Co Lighting
PRCLS/PRCLO. SURGICAL SUITE LUMINAIRE.
Configure
Add to project
RESOURCES
DESCRIPTION

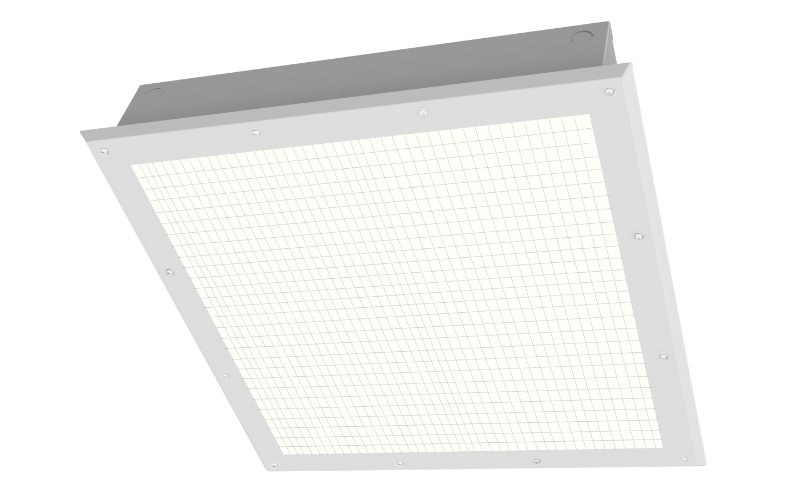

- Recessed luminaire designed for surgical suites / operating rooms.
- Fully gasketed border between internal and external frames
- Outer edge of frame is gasketed and fits snugly against the ceiling
- NSF Certified for Splash Zone Installations
- Minimum 80 CRI; color range 3000K - 5000K available
- Tunable White option available
- Multiple dimming protocols available
- Various light distributions available
- IP66 for recessed applications
- FED-STD-209E/Class 100 (ISO5) suitable
- Compliant with MIL-STD 461G (conducted and radiated emissions)
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 12"24"L: 24"48"
- Light SourceLED
- CCT/Color3000K3500K4000K5000KGreen
- CRI80 90
- Watt(Approx)37 W56 W93 W102 W202 W
- Lumens(Approx)4061 Lm5561 Lm7063 Lm8563 Lm10054 Lm11926 Lm10563 Lm15426 Lm19500 Lm22032 Lm
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance72000 h
- CertificatesUL/CULNSF
- EnvironmentAntimicrobial FinishIP66Surgical
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth3.35 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePRCLS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
