CCDC. Cirrus Ceiling D1 Downlight With Remote Power RGB & RGB+W.
Configure
Add to project
RESOURCES
DESCRIPTION

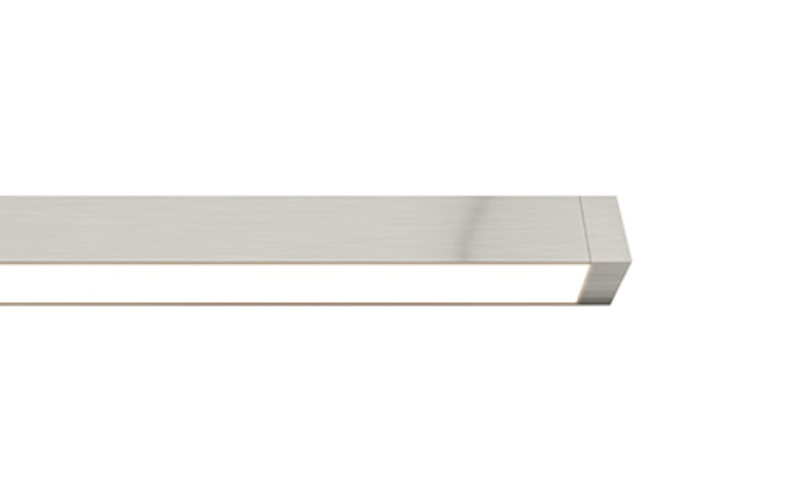

Cirrus Ceiling D1 with Remote 24VDC Power Supply is a linear LED fixture that offers direct light in a clean, contemporary style. Available in increments from 12"- 240" and several metal finish options. Available in RGB and RGB + White which provide dynamic color effects with red, green, blue and white at 2000k (if selected). Order the Cirrus Ceiling D1 with either a Diffused White Lens with a 100º Beam Spread or a Clear Frosted 60º Lens with a Black or White Louver for additional diffusion. Remote 24VDC power supplies are required and ordered separately. Fixture includes 5 year pro-rated warranty. For custom designs and quotes, email our design team: design@PureEdgeLighting.com
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.9"L: Run length (Ft)H: 0.9"
- Light SourceLED
- CCT/ColorRGBRGBW
- CRI80
- Watt(Approx)5 W6.3 W
- Lumens(Approx)
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%DMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USAT24*
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
