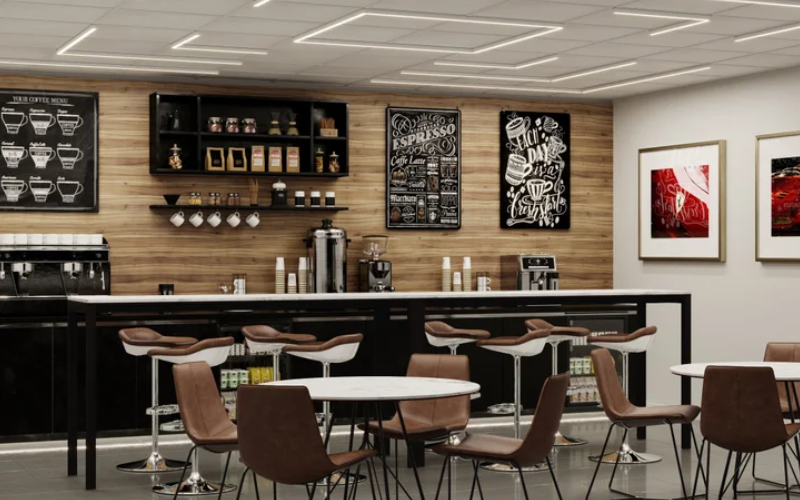

CCGDS. CIRRUS T-BAR GEO FORM SYSTEM WITH LIT CORNERS 24VDC - REMOTE POWER.
Configure
Add to project




RESOURCES
DESCRIPTION
The Cirrus T-Bar Ceiling Geo Form System offers clean, uninterrupted geometric shapes like Squares, Rectangles, L's, T's, X's, Window and Sliding Window, or Straight Channel Lengths that correspond with a grid ceiling. Available in 3 wattages, 11 Color Temperatures ranging from 2400K to 4000K including, Dynamic/Variable White (2K6K) or (27K6) and two Warm Dim options 2700K (27D) or 3000K (30D) that dim down to 2000K. With several Metal Finishes alongside eight types of preformed modular configurations. Composed of Cirrus Ceiling Channel with mitered lit corners, this system allows you to design by following the 2x2 or 2x4 drop ceiling grid (See pages 2-9). Use in combination with TS24 T-Bar Track, to incorporate various LED Track heads for directional lighting to easily accommodate various tasks (See pages 17-19). Power Supplies sold separately. For Custom Quotes, Design and Layout assistance email our design team design@PureEdgeLighting.com.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.9"2 Ft3 Ft4 Ft6 Ft8 FtL: 2 Ft24"3 Ft4 Ft48"6 Ft72"8 Ft96"120"Run length (Ft)H: 0.9"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000KTunable White
- CRI90 95 85 84
- Watt(Approx)2.5 W/Ft4.4 W/Ft7.3 W/Ft
- Lumens(Approx)175 Lm/Ft460 Lm/Ft669 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-Lume 3DLutron Hi-Lume 2-wire (LTEA)Lutron Hi-Lume 3-wire (L3D)DMX
- Controls/NetworkWireless Dimming
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USARoHS
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
