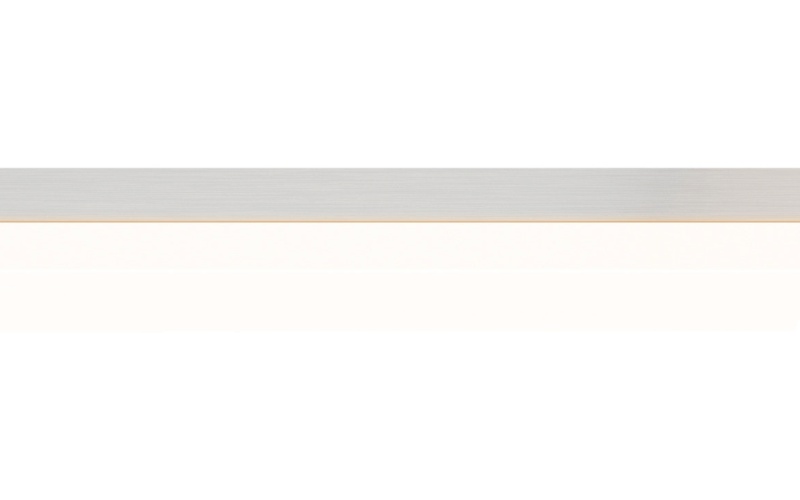

CCS1. CIRRUS CEILING / WALL S1 DIY SQUARE DOWNLIGHT LENS 24VDC DO-IT-YOURSELF SYSTEM.
Configure
Add to project


RESOURCES
DESCRIPTION
Cirrus Ceiling/Wall S1 DIY (Do-It-Yourself) allows you to create more complex configurations using pre-formed components for simplifying the installation process. The versatile 24VDC linear LED system, creates glare-free line of architectural lighting. The system mounts to a wall or ceiling with mounting clips and small junction box provided. Cirrus Ceiling/Wall S1 Channel and Lens are sold in 4', 5', 8' and 10' increments and LED Soft Strip is sold in 1' increments up to 40' for 2.5 watt soft strip. Offered in a broad range of wattages and color temperatures from 2400K through 4000K in Static White, Warm Dim (27D or 30D), Pro-Dim (27PD or 30PD), Tunable White (2K6K or 27K6), Dynamic RGB, RGB+White in 2000K (special order in 27K, 30K and 40K), and TruColorâ„¢ RGBTW Color Changing RGB with Tunable White 1500K-6500K. Influenced by simplicity and elegance, the Cirrus Ceiling/ Wall S1 DIY system brings together a modern and dynamic appearance to residential and commercial projects alike, offering unlimited creativity, and empowering you to design one-of-a-kind, personalized spaces every time. Let the drywall be your canvas.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.9"L: 4 Ft5 Ft8 Ft10 FtRun length (Ft)H: 0.9"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000KTunable WhiteTunable White & ColorsRGBRGBWYellow/AmberRedGreenBlue
- CRI90 94 92
- Watt(Approx)2.5 W/Ft2.6 W/Ft4.4 W/Ft4.8 W/Ft5 W/Ft4.6 W/Ft6.3 W/Ft7 W/Ft7.3 W/Ft7.5 W/Ft
- Lumens(Approx)173 Lm/Ft242 Lm/Ft362 Lm/Ft451 Lm/Ft500 Lm/Ft410 Lm/Ft669 Lm/Ft631 Lm/Ft548 Lm/Ft705 Lm/Ft554 Lm/Ft1033 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCCS1-DIY
—
