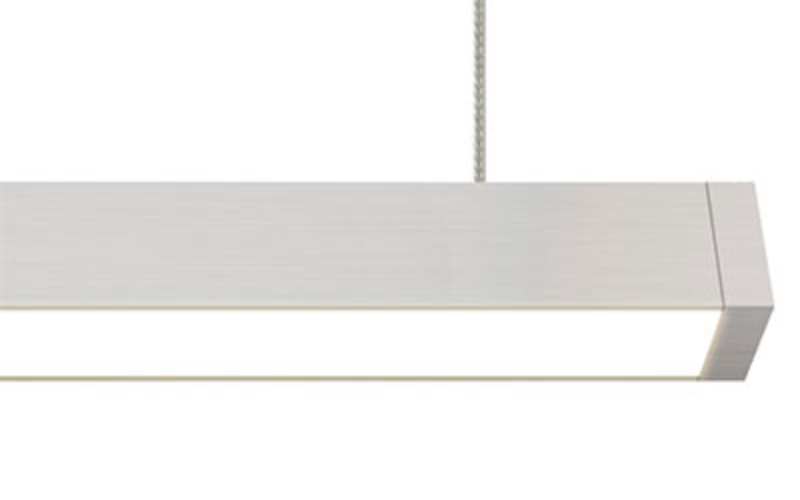

CSDS. CIRRUS SUSPENSION D1 DOWNLIGHT WITH REMOTE POWER, END FEED.
Configure
Add to project



RESOURCES
DESCRIPTION
Cirrus Suspension D1 Downlight with Remote 24VDC Power Supply (sold separately) is a linear LED fixture that offers direct light in a clean, contemporary style. Available in increments from 12"-240" and several Metal Finish Options. Choose High or Standard Efficiency in multiple color temperatures ranging from 2400K to 4000K, including two Warm Dim options of 2700K (27D) or 3000K (30D) that dim down to 2000K. Order the Cirrus D1 Suspension with either a Diffused White Lens with a 100° Beam Spread or a Clear Frosted 60° Lens. Add a Black or White Louver for additional glare reduction. Remote 24VDC power supplies are required and ordered separately. Fixture includes a 5 year pro-rated warranty. For custom designs and quotes, send drawings to design@PureEdgeLighting.com.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.9"L: Run length (inch)H: 0.9"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K
- CRI90 95 93 92 85
- Watt(Approx)2.5 W/Ft4.4 W/Ft7.3 W/Ft9.6 W/Ft
- Lumens(Approx)260 Lm/Ft450 Lm/Ft735 Lm/Ft953 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to <1%ELV/Reverse/Trailing0-10VLutron Hi-lume Premier 3-wire (L3D03W)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLT24*RoHS
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCSDS
—
