CST1P. CIRRUS SUSPENSION T1 TUBULAR T1 DYNAMIC/TUNABLE WHITE DOWNLIGHT, CENTER FEED.
Configure
Add to project



RESOURCES
DESCRIPTION

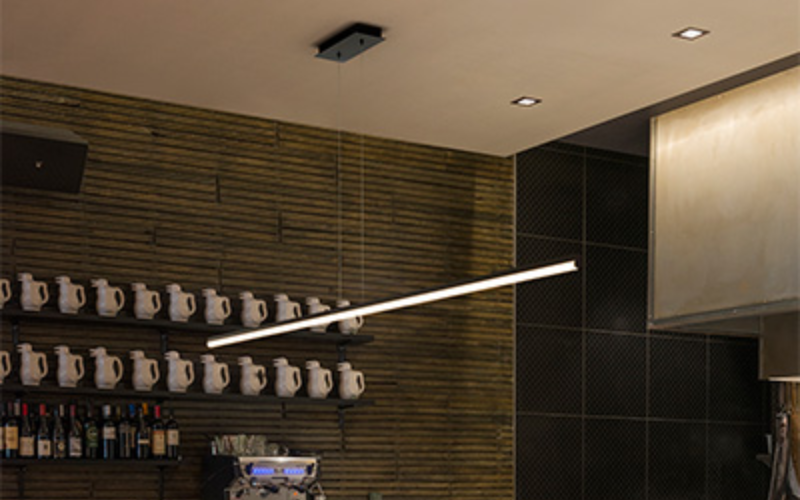

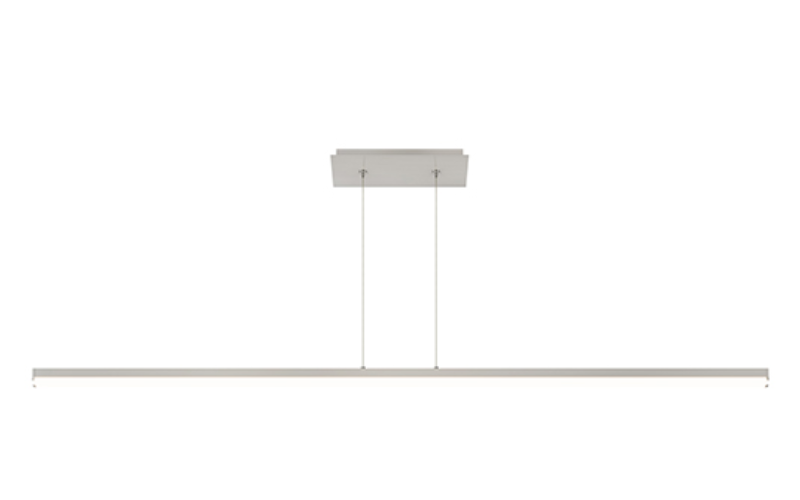

Cirrus T1 Suspension Downlight Center feed with Dynamic/Tunable White is a linear LED fixture that offers soft yet clean illumination through a Diffused White Tubular Lens with a 176° Beam Spread. Dynamic Tunable White technology grants independent control for adjusting color temperature and brightness. The 2K4K option provides a range of 2000K (Amber) through 4000K (Neutral White), ideal for residential and hospitality settings. The 27K6 option ranges from 2700K (Warm White) through 6500K (Cool White), suitable for healthcare, education, office and other commercial applications. Use with two dimmers or our proprietary Tunable White Controller for fast and accurate adjustment with three pre-set scenes (Ordered separately). Available in various incremental lengths from 36" – 120" with several metal finish options. Order CSD_P with power supplies included in the Canopy or CSD_R remote power supplies sold separately. Optional Fast Jack 12V Port Canopy (C1) for mounting Fast Jack fixtures to easily accommodate a variety of moods and tasks. Fixture includes a 5-year pro-rated warranty. For custom lengths and quotes, email our design team design@PureEdgeLighting.com.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.13"L: Run length (inch)H: 1.75"
- Light SourceLED
- CCT/ColorTunable White
- CRI90
- Watt(Approx)5 W/Ft10 W/Ft
- Lumens(Approx)374 Lm/Ft716 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-Lume 2-wire (LTEA)Lutron Hi-Lume 3-wire (L3D)DMX
- Controls/Network
- Power/VoltageIntegralRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLMade in USAT24*RoHS
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
