FN-SCS8. SABER SUSPENSION, 0.8'' ROUND LENS 24VDC, 5W 7W OUTDOOR, TUNABLE WHITE.
Configure
Add to project



RESOURCES
DESCRIPTION

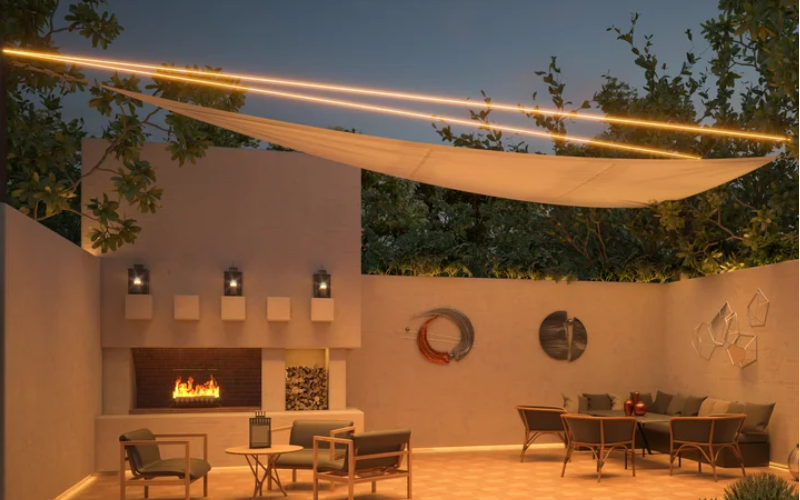

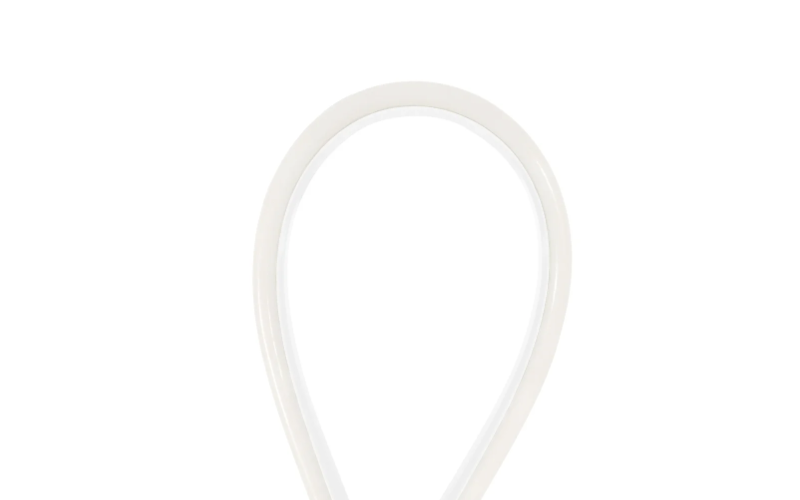

Visually stimulating and housed within an unconventional silicone lens, PureEdge's Flexible Saber Suspension is Tension hung offering flexible installation and conceptual yet functional design. The SCS8 bends Up and Down giving it the unique ability to traverse open spaces wall to wall, wall to ceiling, or floor to ceiling. The 0.75" wide round lens, offers superior color quality and performance while creating uniform illumination without pixelation. Tunable White 2000K-6500K (2K6K) or 2700K-6500K (27K6) grants independent control and adjustment of color temperature and intensity from 2000K (Sunset) through 6500K (Day Light White). Tunable white lighting visually, biologically and emotionally contributes to human interaction with the physical world. Human centric lighting (HCL) builds on this technology bringing the dynamics of natural light and delivers a positive effect on human health, well-being and performance. Saber is an IP67 rated wet location system featuring watertight barrel connections. System includes a pair of turnbuckles and aircraft cable. Includes a 5-year pro-rated warranty. Patent Pending. For custom designs and quotes, email our design team: design@PureEdgeLighting.com.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.75"L: Run length (inch)H: 1.12"
- Light SourceLED
- CCT/ColorTunable White
- CRI92
- Watt(Approx)4.4 W/Ft7.3 W/Ft
- Lumens(Approx)382 Lm/Ft586 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDMX
- Controls/NetworkWireless Dimming
- Power/VoltageRemote120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLRoHS
- EnvironmentDampIP67
- Mounting TypePendantSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
